Idler Gear: Service and Repair

WITH 4EAT

DISASSEMBLE

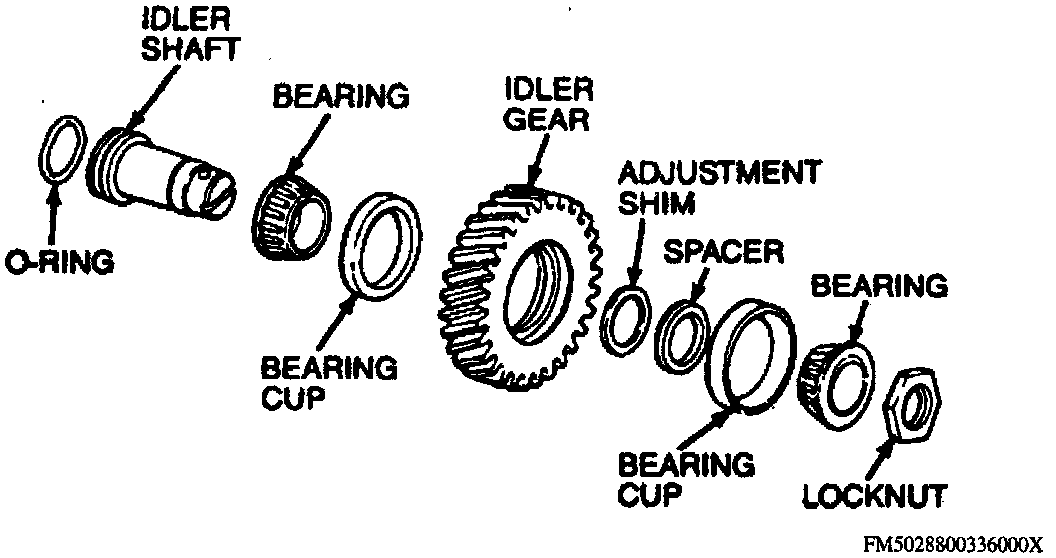

Exploded View Of Idler Gear:

1. Disassemble idle gear as shown in the Exploded View Of Idler Gear image.
2. Secure idle shaft in vise using torque adapter tool No. T87C-77000-E or equivalent, then remove locknut.

CAUTION: Use protective plates to prevent damage to adapter.

3. Remove inner bearing cup from idle gear, using internal puller too No. D80L-943-A and impact slide hammer tool No. T50T-1 00-A or equivalents.
4. Remove outer bearing cup from idle gear, using step plate adapter tool No. D80L-630-11 or equivalent.
5. Inspect all components for excessive wear or damage and replace as necessary.

ASSEMBLE
1. Reverse procedure to assemble, noting the following:
a. Secure idle shaft in vise, then torque locknut to 94-130 ft lbs.
b. Measure bearing preload using spring scale or torque wrench. Preload should be 0.26-7.8 lbs.
c. If preload in not as specified, torque locknut while checking preload to 94-130 ft lbs.
d. On 1993-1995 Probe models, if preload cannot be obtained within specified torque range, select appropriate adjustment shim(s) from either kit No. F32Z-7N112-A thicknesses between 0.17887-0.1966 inch or kit No. F32Z-7N112-B 0.1980-0.2090 inch. No more than seven shims should be used to obtain correct preload. Preload can be reduced by increasing thickness of shims.

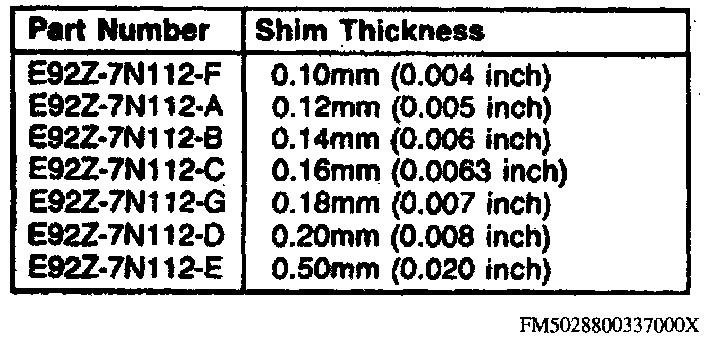

Idler Gear Pressure Plate Thickness Chart:

e. On all other models, if preload cannot be obtained within specified torque range, select appropriate adjustment shims from the Idler Gear Pressure Plate Thickness Chart. No more than seven shims should be used to obtain correct preload. Preload can be reduced by increasing thickness of shims.
