Home >> Mercury >> 1993 >> Capri L4-1597cc 1.6L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Part 1 of 2

Part 1 of 2

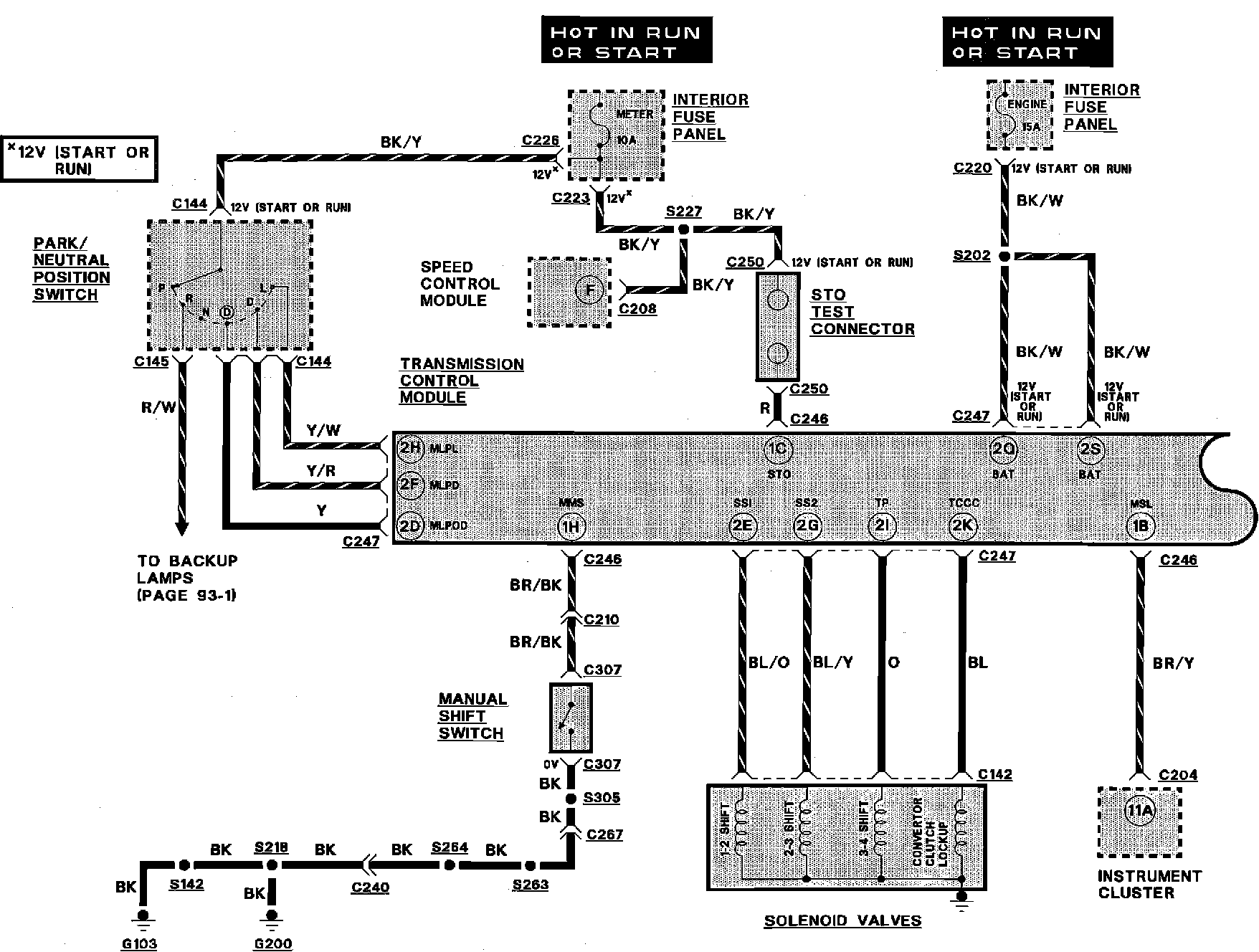

Transmission Controls:
