Home >> Mercury >> 1993 >> Capri L4-1597cc 1.6L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> IGN Tests >> IGN8 - Check Secondary Display (Continued)

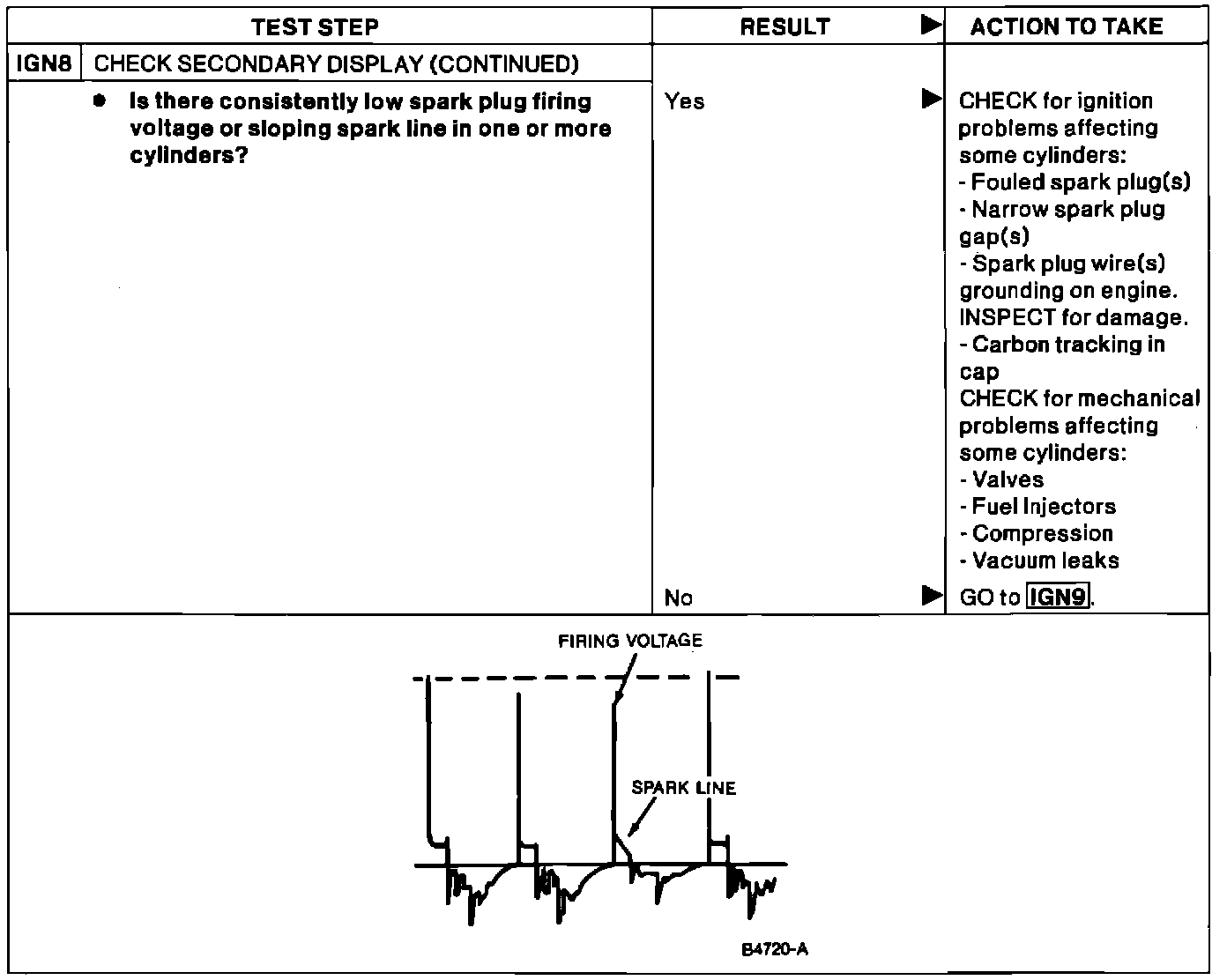

IGN8 - Check Secondary Display (Continued)

Pinpoint Test IGN8:
