Home >> Mercury >> 1993 >> Capri L4-1597cc 1.6L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Pinpoint Tests >> IA - Inlet Air Control System >> IA6 - Charge Air Cooler Condition and Leakage

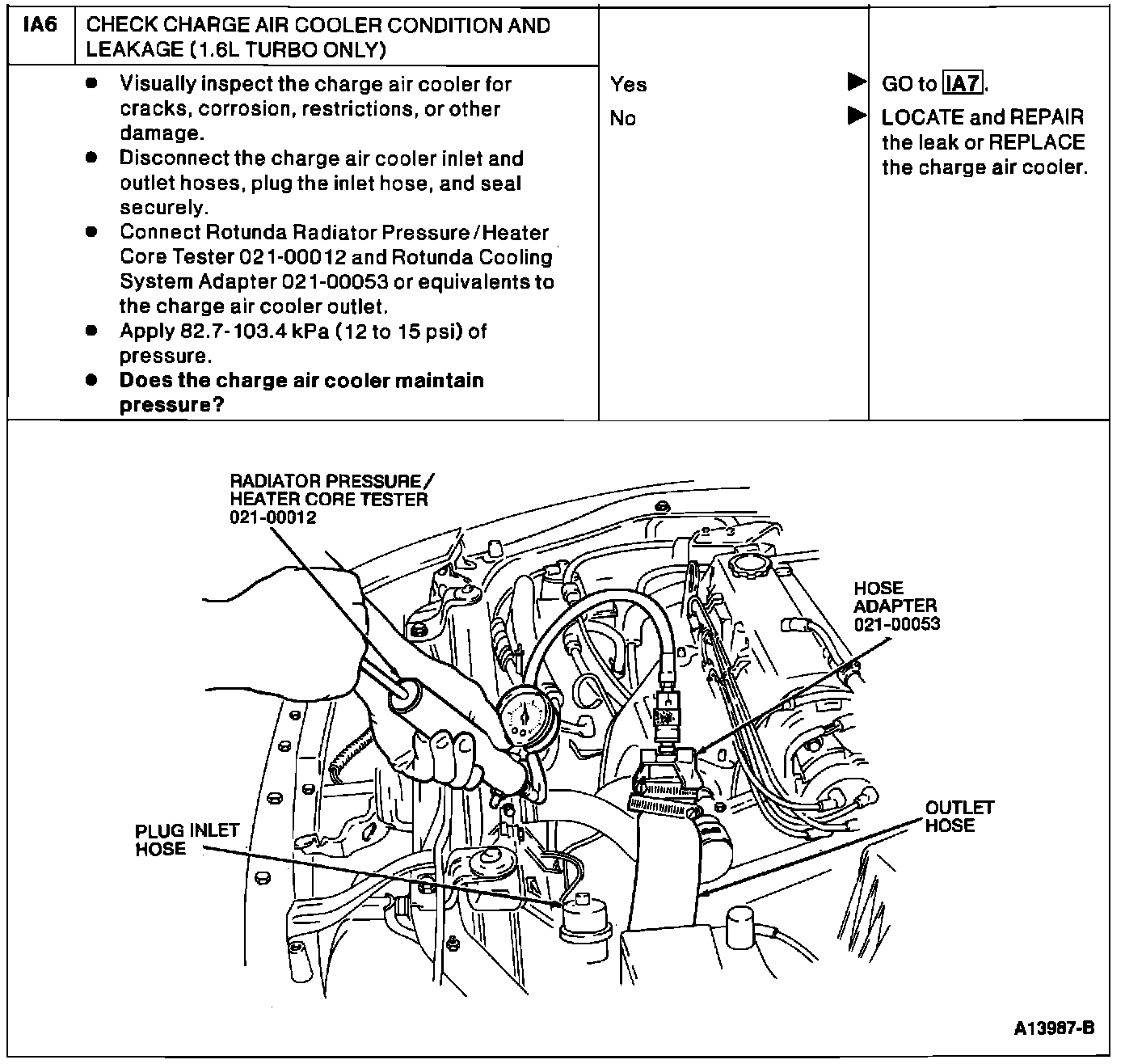

IA6 - Charge Air Cooler Condition and Leakage

Pinpoint Test IA6:
