VPWR - Testing Notes and Schematic

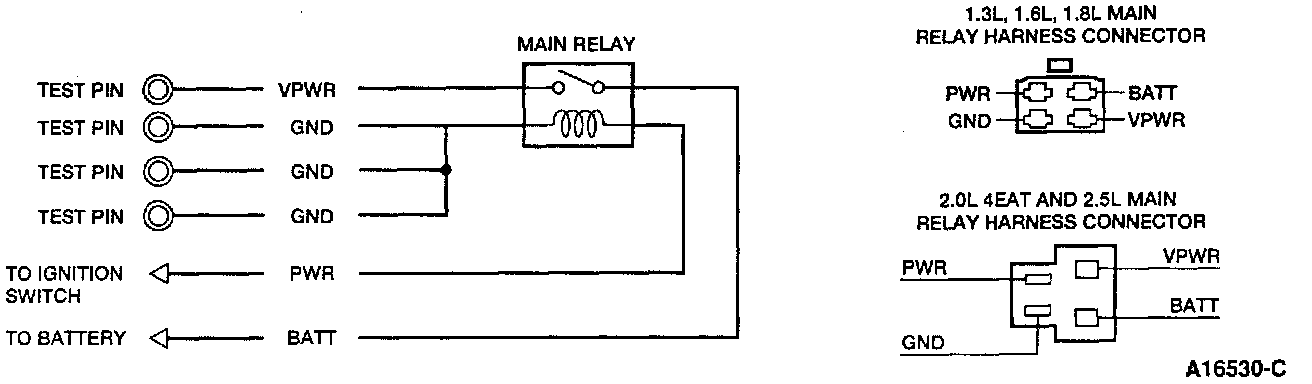

Pinpoint Test VPWR Schematic:

Enter this Pinpoint Test only when directed here by other Pinpoint Tests.

This test is only intended to diagnose the VPWR and GND circuits.
