Home >> Mercury >> 1993 >> Capri L4-1597cc 1.6L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> VAF - Vane Air Flow Sensor >> VAF6 - VPWR/SIG RTN at VAF Meter

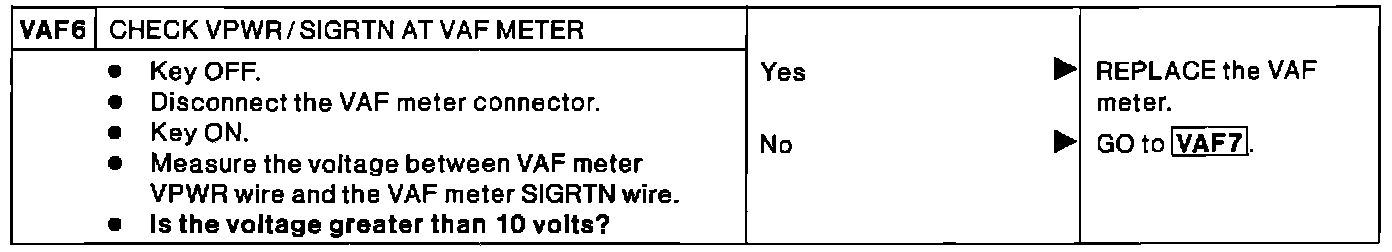

VAF6 - VPWR/SIG RTN at VAF Meter

Pinpoint Test VAF6:
