STO - Testing Notes and Schematic

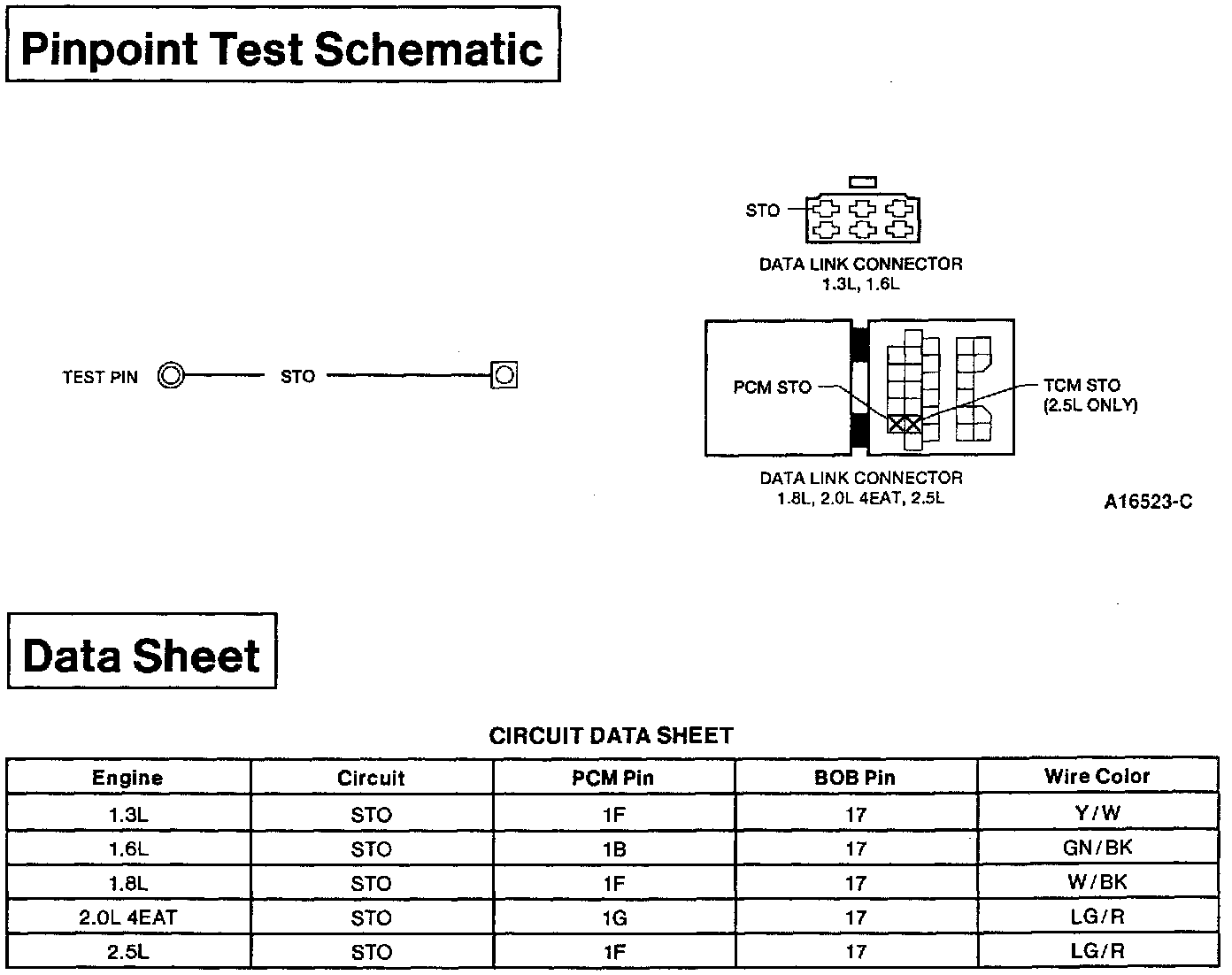

Pinpoint Test STO Schematic & Circuit Data:

Enter this Pinpoint Test only when directed here by Pinpoint Test STI.

This test is only intended to diagnose the STO circuit.
