PGC - Testing Notes and Schematic

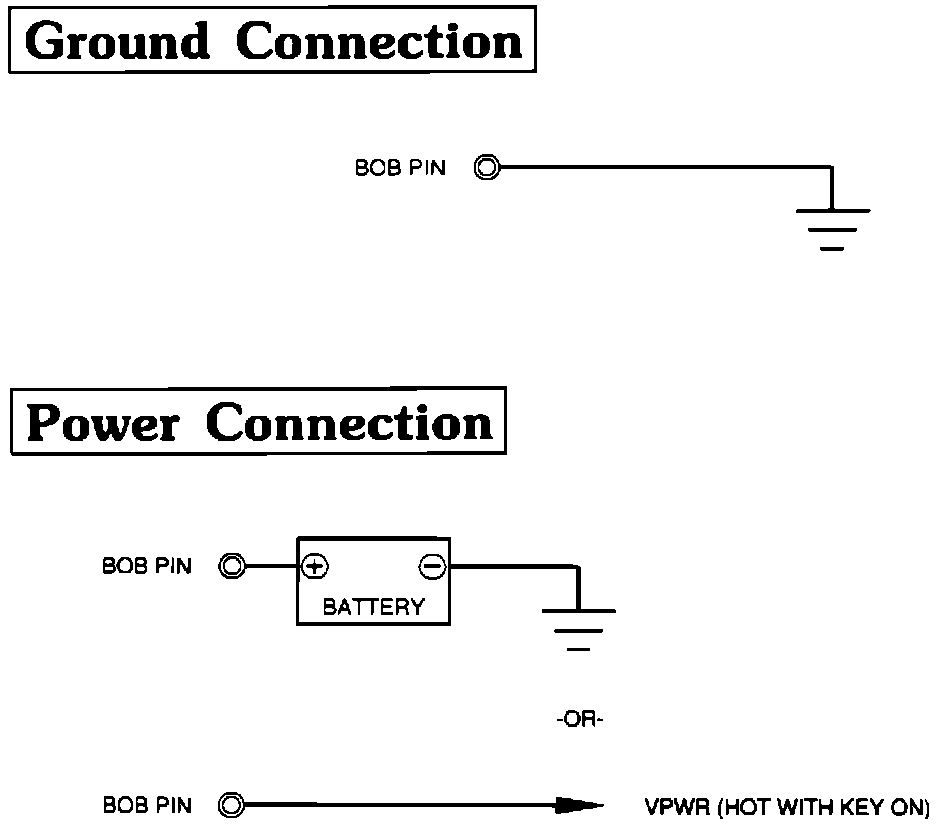

Pinpoint Test PGC Schematic:

Enter this Pinpoint Test only when Quick Test step 11, Pinpoint Test VREF or STO, or 4EAT Pinpoint Test VREF directs you here.

This test is only intended to diagnose the KAPWR and GND circuits.
