Home >> Mercury >> 1993 >> Capri L4-1597cc 1.6L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> IDM - Ignition Diagnostic Monitor >> IDM8 - SPOUT at Ignition Module

IDM8 - SPOUT at Ignition Module

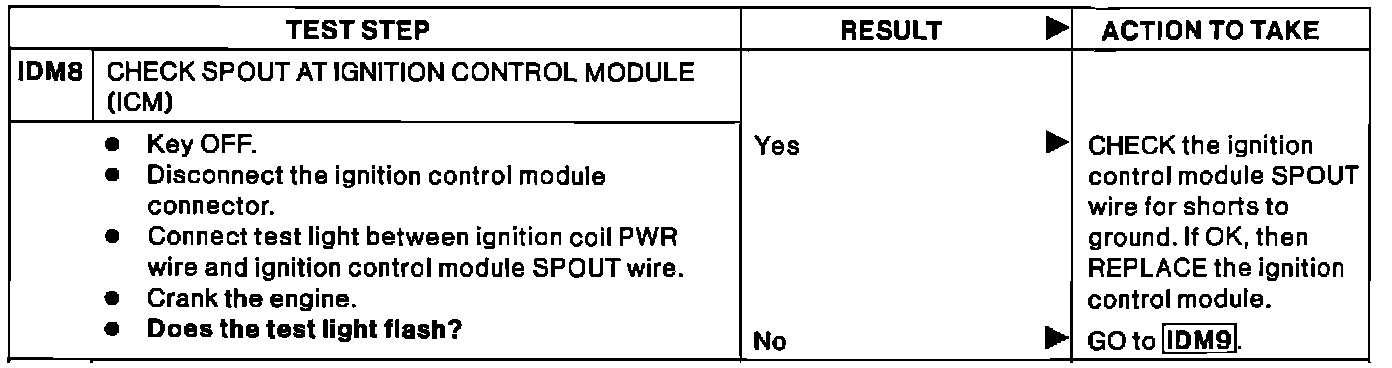

Pinpoint Test IDM8:
