ECT - Engine Coolant Temperature Sensor
>>
ECT - Circuit Data and Sensor Resistance
ECT - Circuit Data and Sensor Resistance

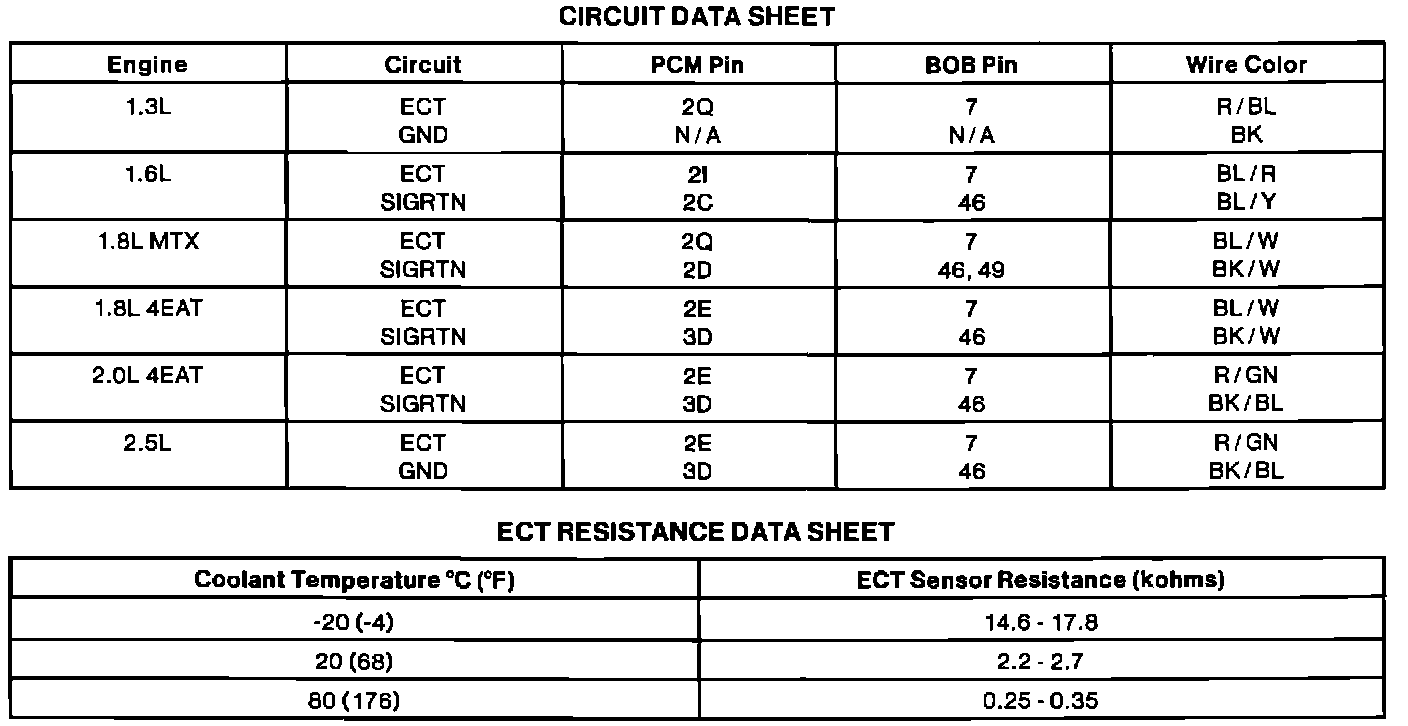

Pinpoint Test ECT Circuit Data & Sensor Resistance:
