Home >> Mercury >> 1993 >> Capri L4-1597cc 1.6L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> CID - Cylinder Identification Sensor >> CID3 - Distributor to PCM Leads

CID3 - Distributor to PCM Leads

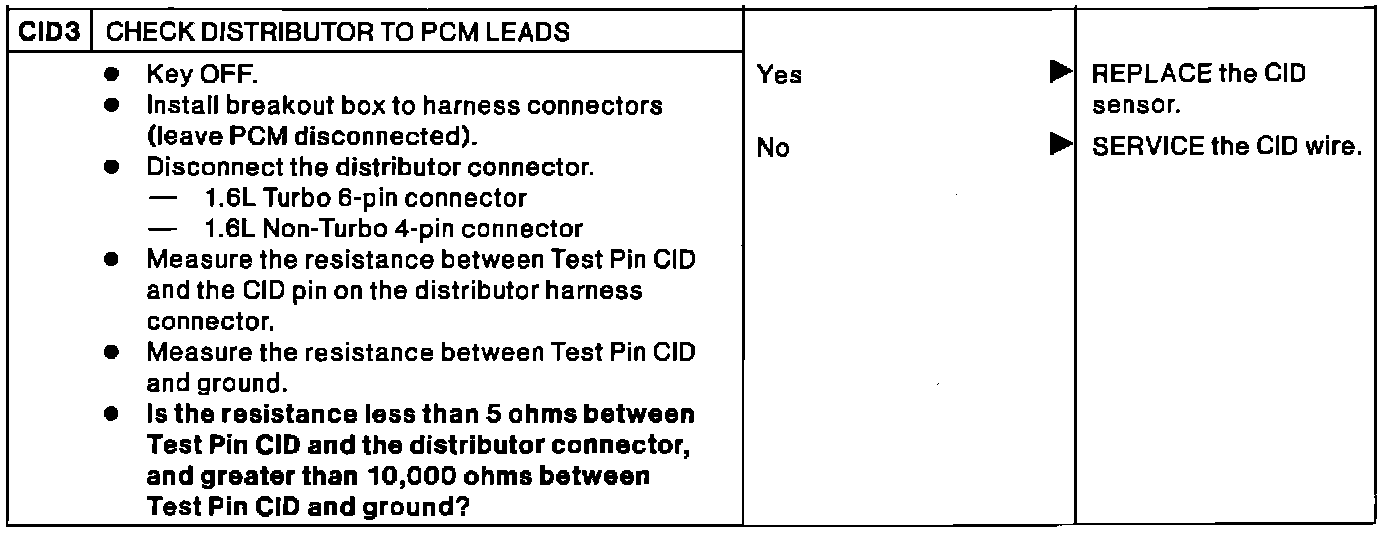

Pinpoint Test CID3:
