Home >> Mercury >> 1993 >> Capri L4-1597cc 1.6L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> G200, G202, G300, G301 and G302

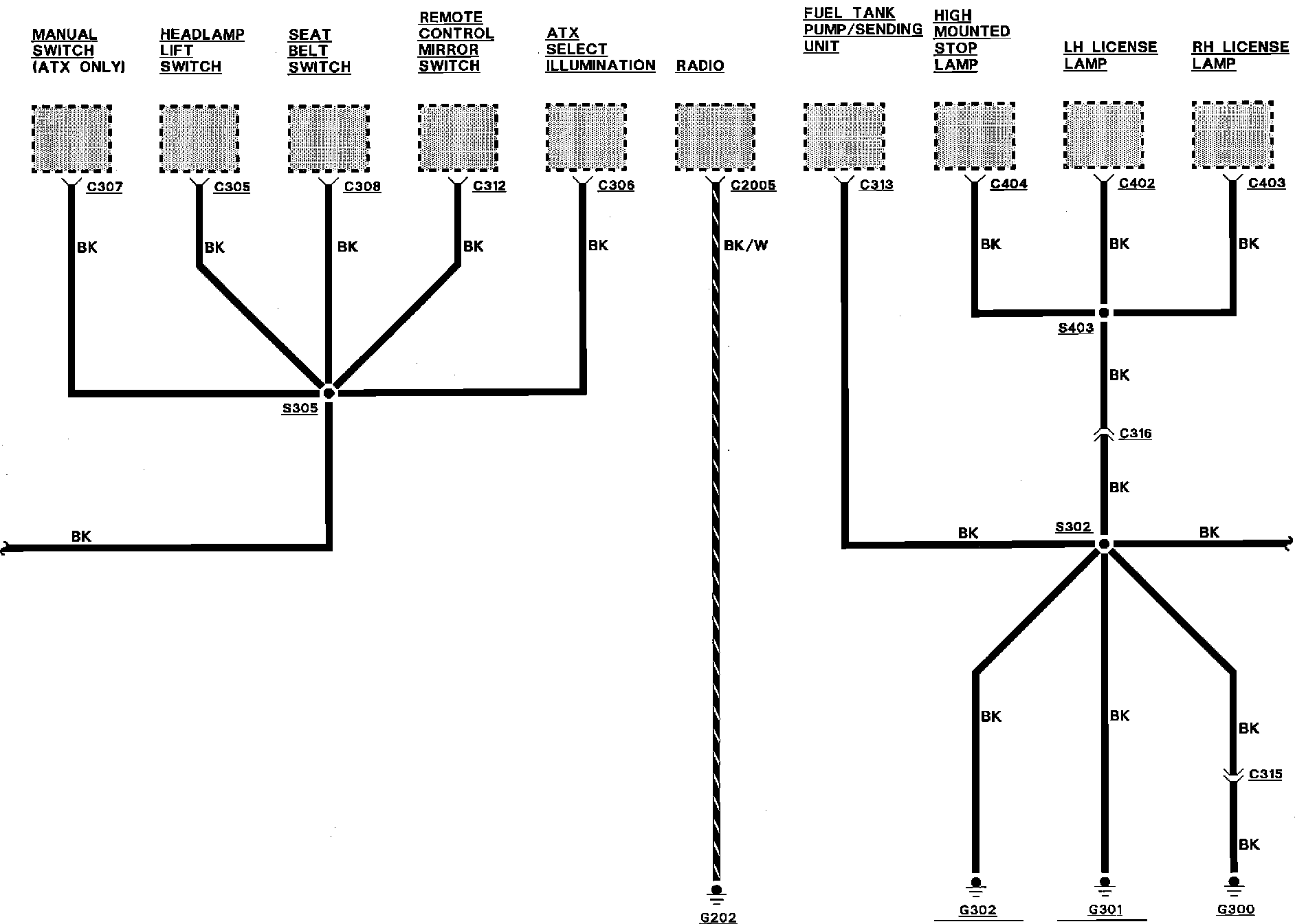

G200, G202, G300, G301 and G302

Grounds:
