Home >> Mercury >> 1992 >> Tracer L4-116 1.9L SOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> G - No Codes - Intermittent Diagnosis >> G5 - Cold Wiggle Test

G5 - Cold Wiggle Test

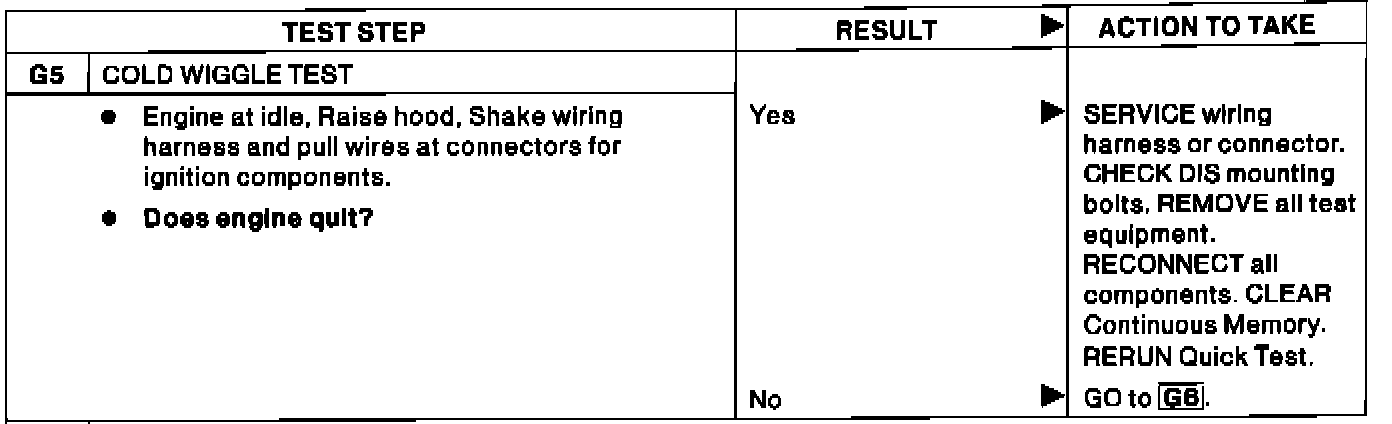

Pinpoint Test G5:
