Home
>>
Mercury
>>
1992
>>
Tracer L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests
>>
D - No Start Code 215, 216, 217, or 218, or Coil Failure
>>
D1 - Check For Spark During Cranking
D1 - Check For Spark During Cranking

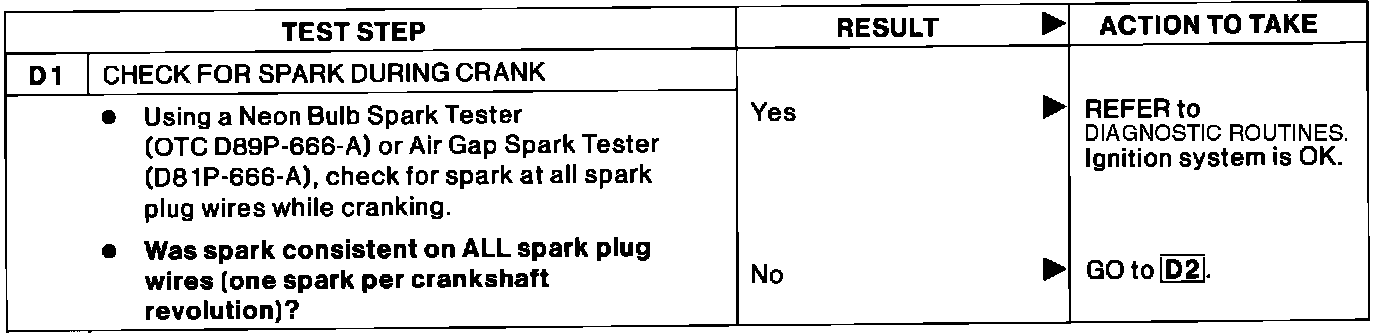

Pinpoint Test D1:
