Home >> Mercury >> 1992 >> Tracer L4-116 1.9L SOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> B - Code 222 - IDM Failure >> B3 - Check IDM Output From EDIS Module - IDM Fault

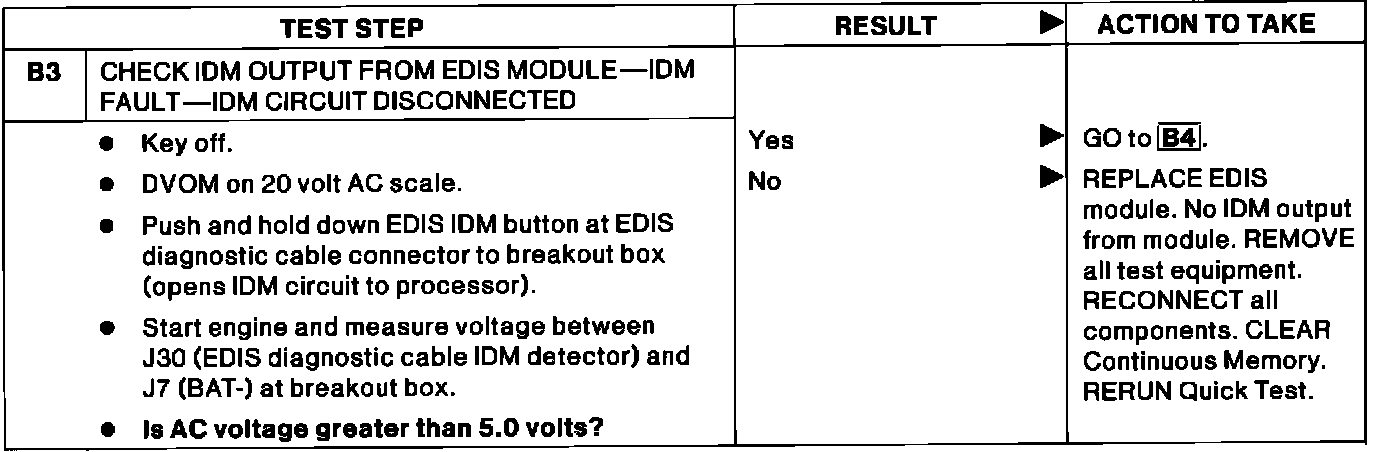

B3 - Check IDM Output From EDIS Module - IDM Fault

Pinpoint Test B3:
