Full Body View

HATCHBACK

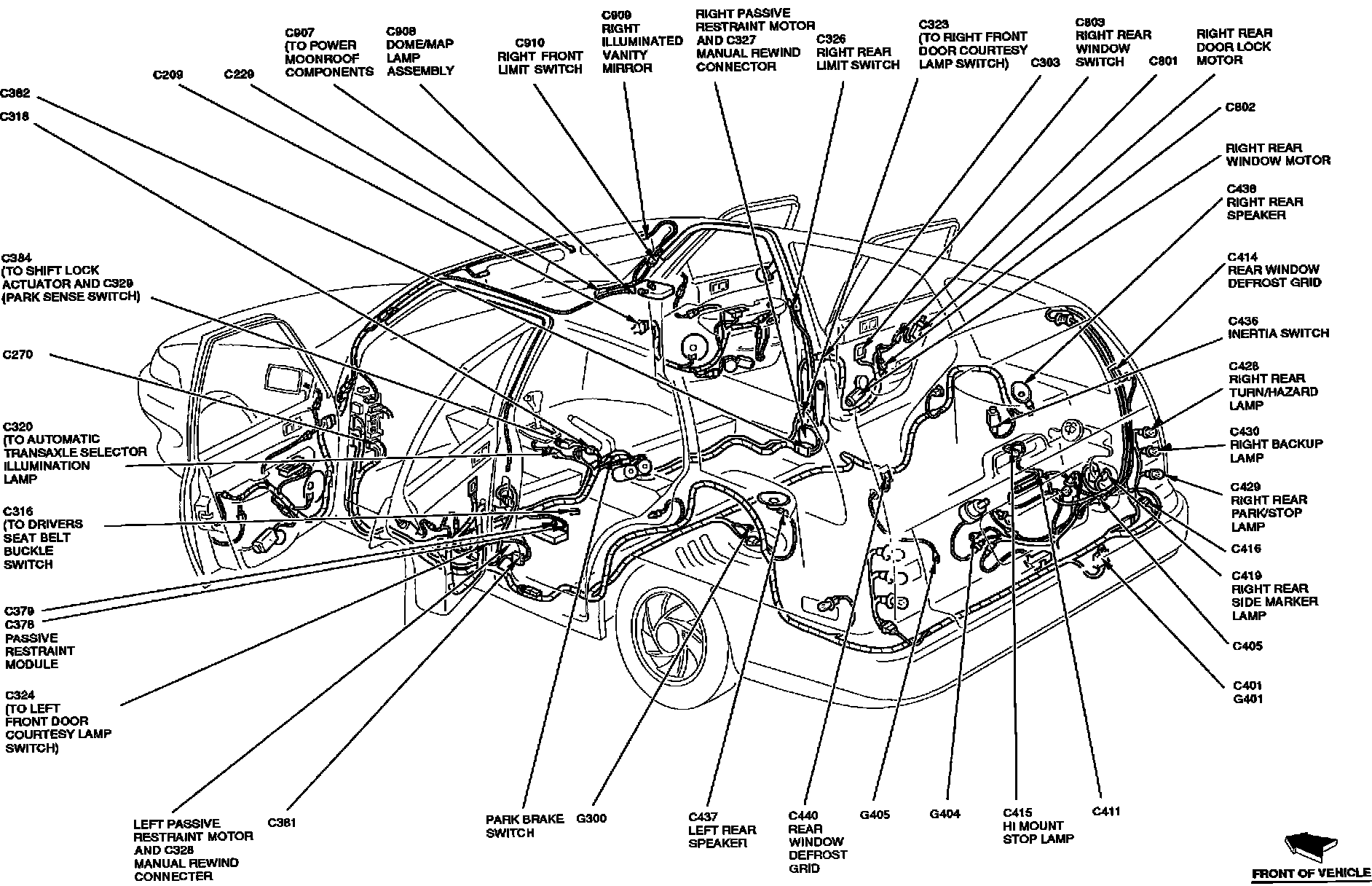

Component Location:

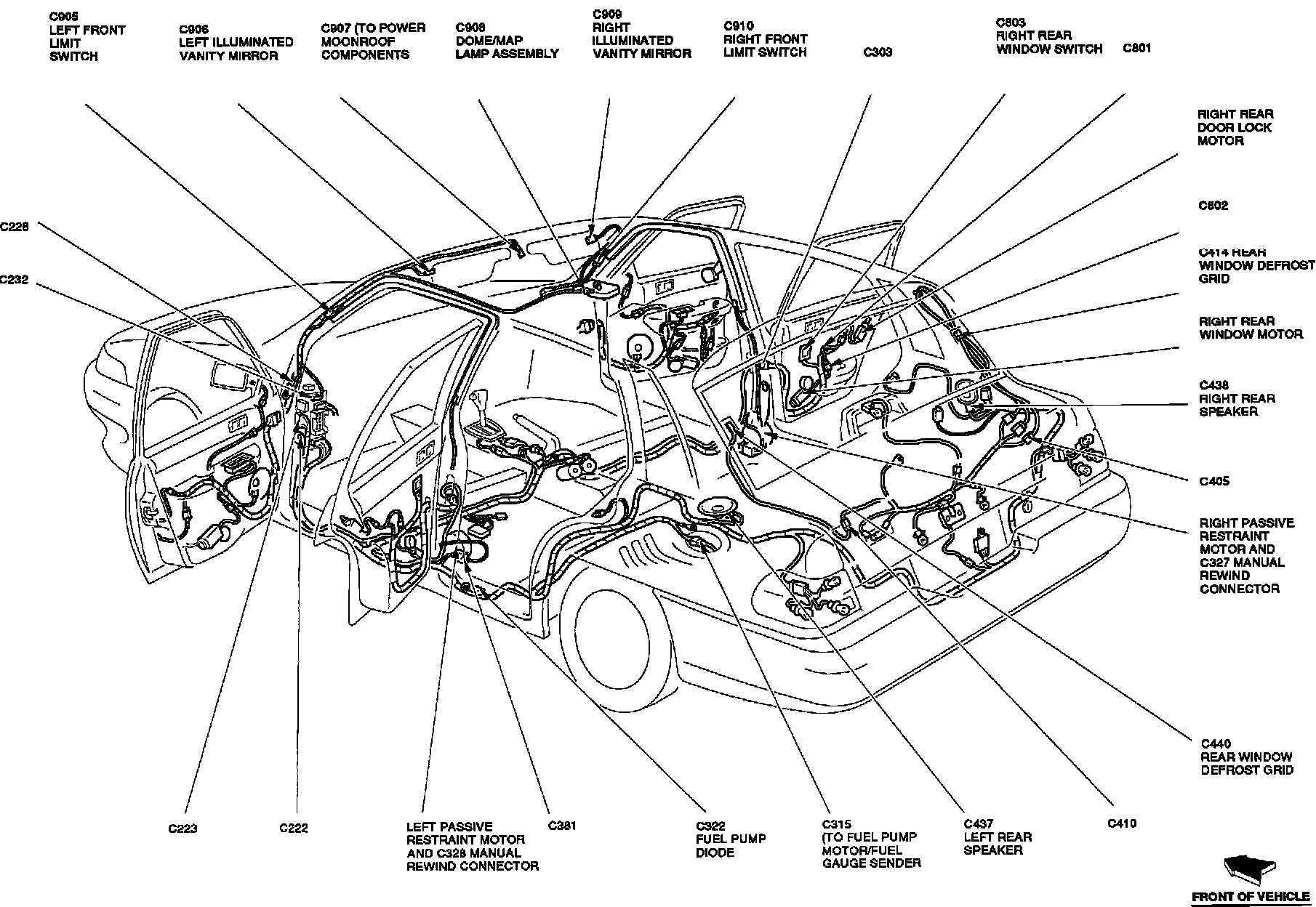

Component Location:








STATION WAGON

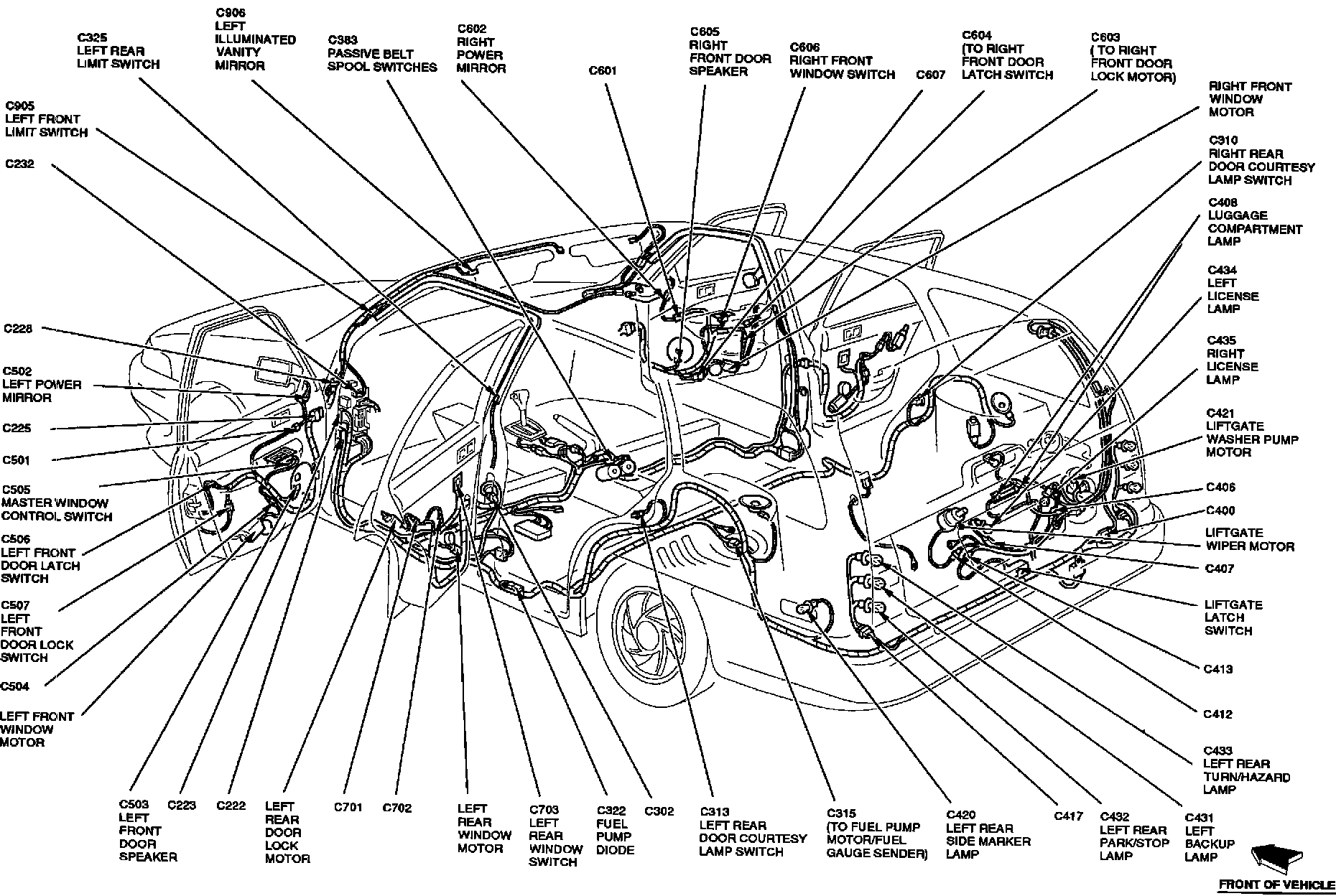

Component Location:






Component Location:







SEDAN

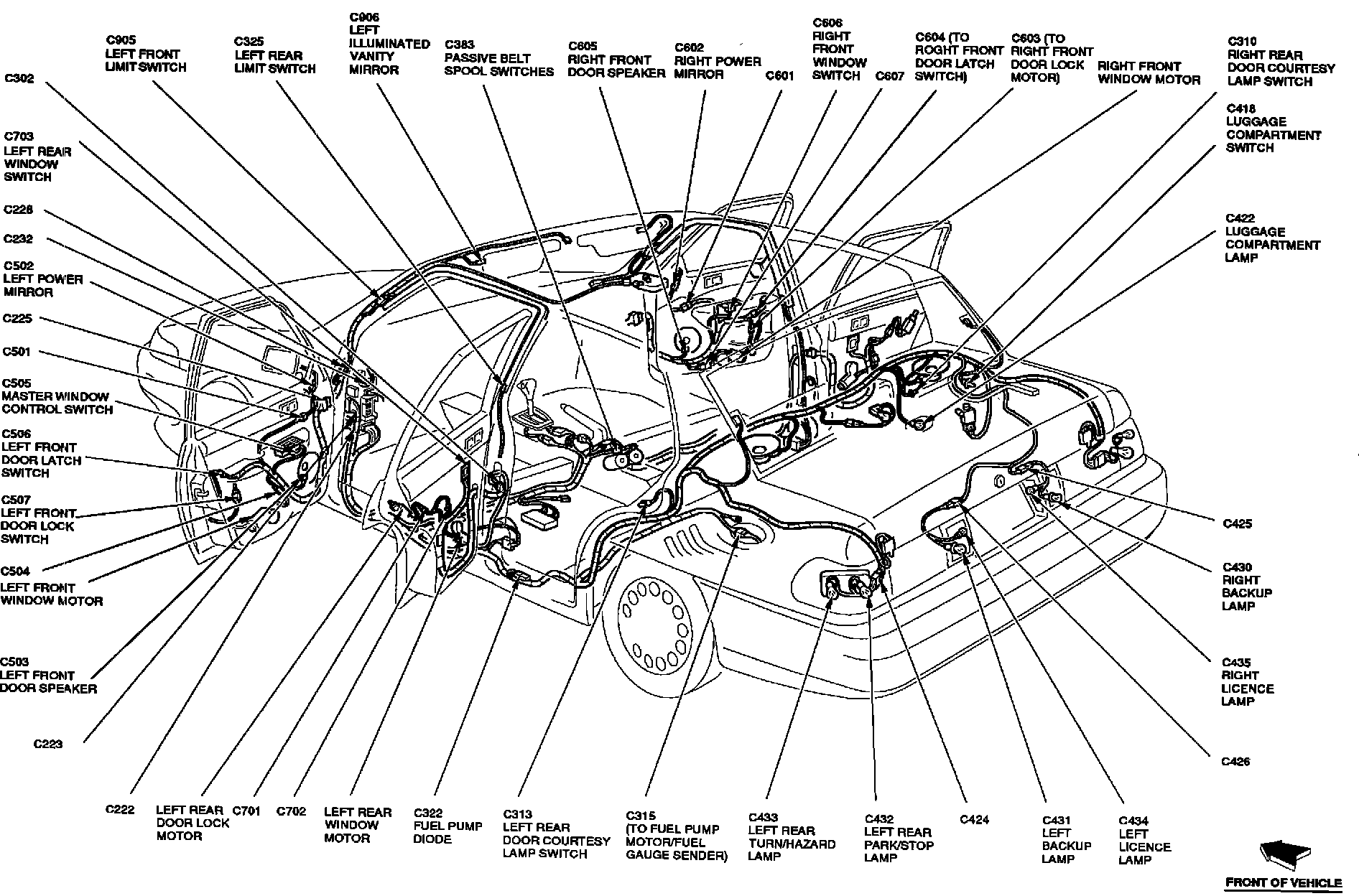

Component Location:

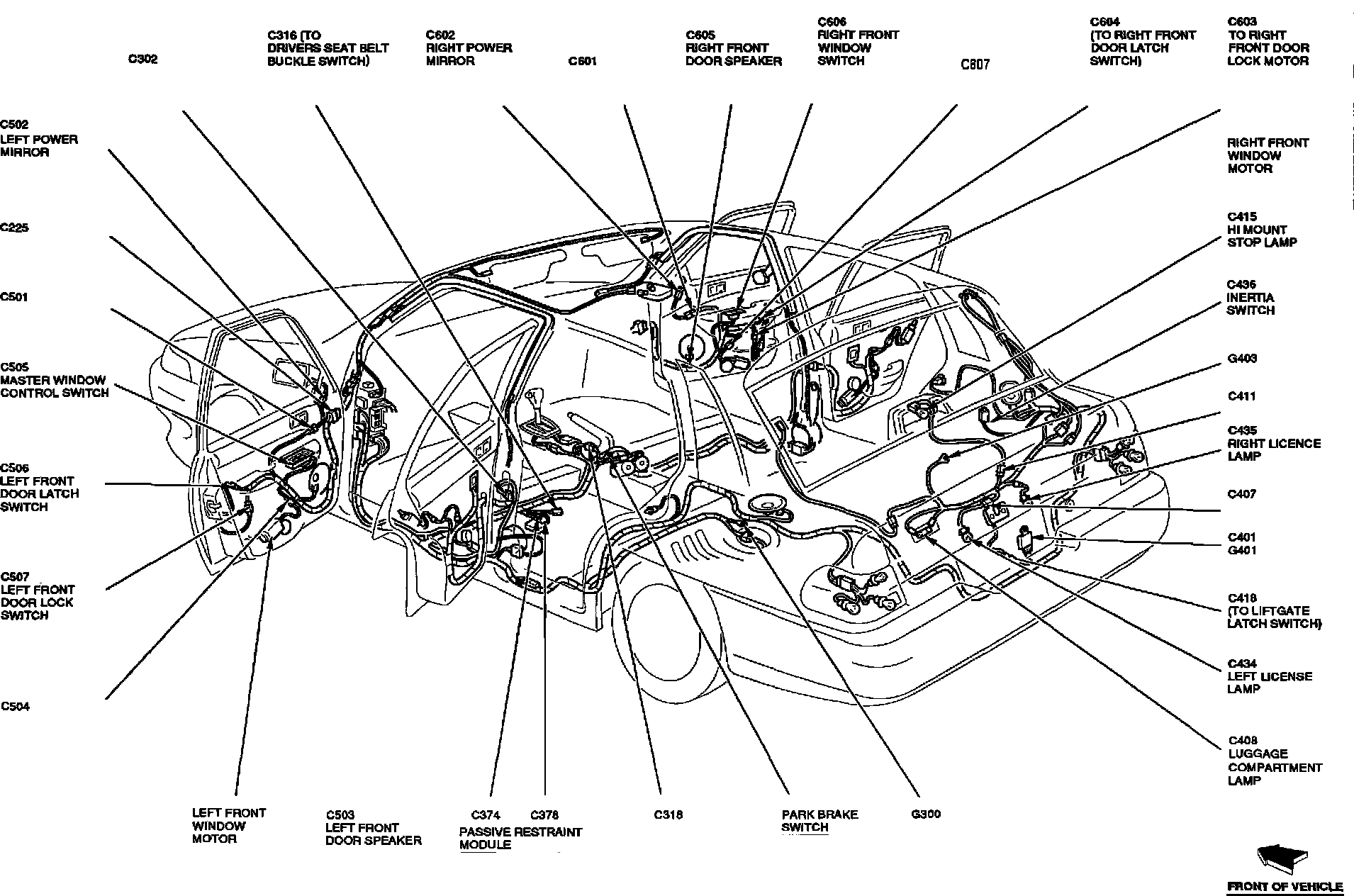

Component Location:
