Component Tests and General Diagnostics


COMPONENT TESTING PROCEDURE

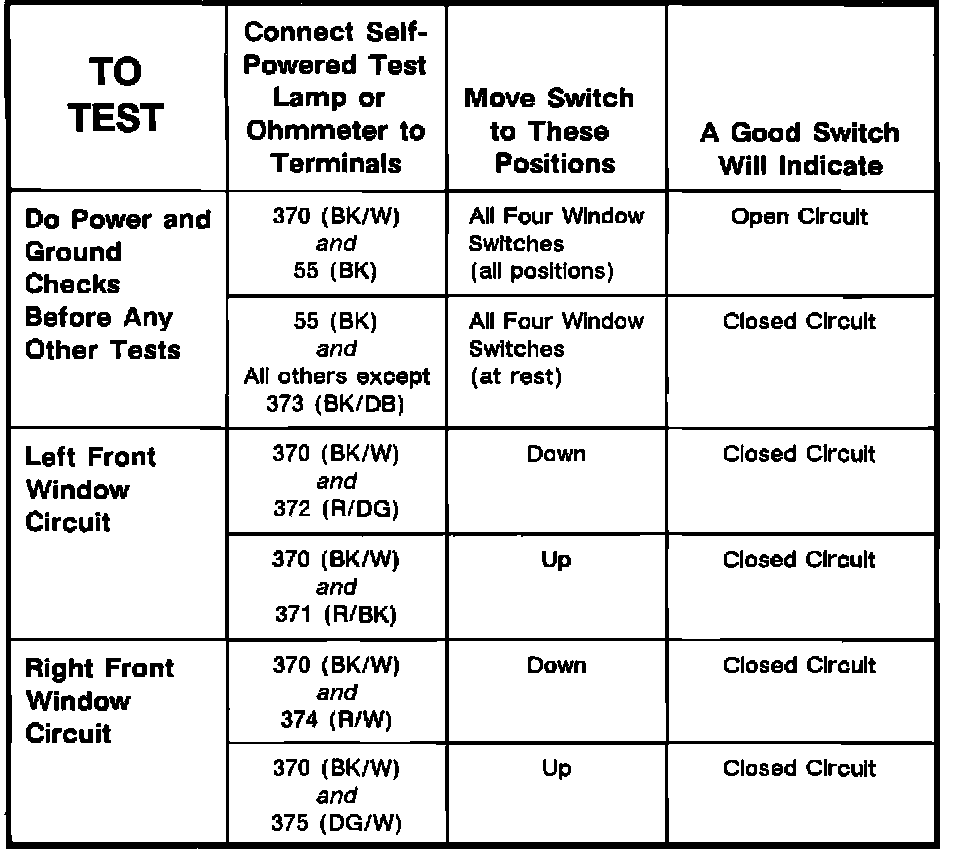

Component Testing Procedure:

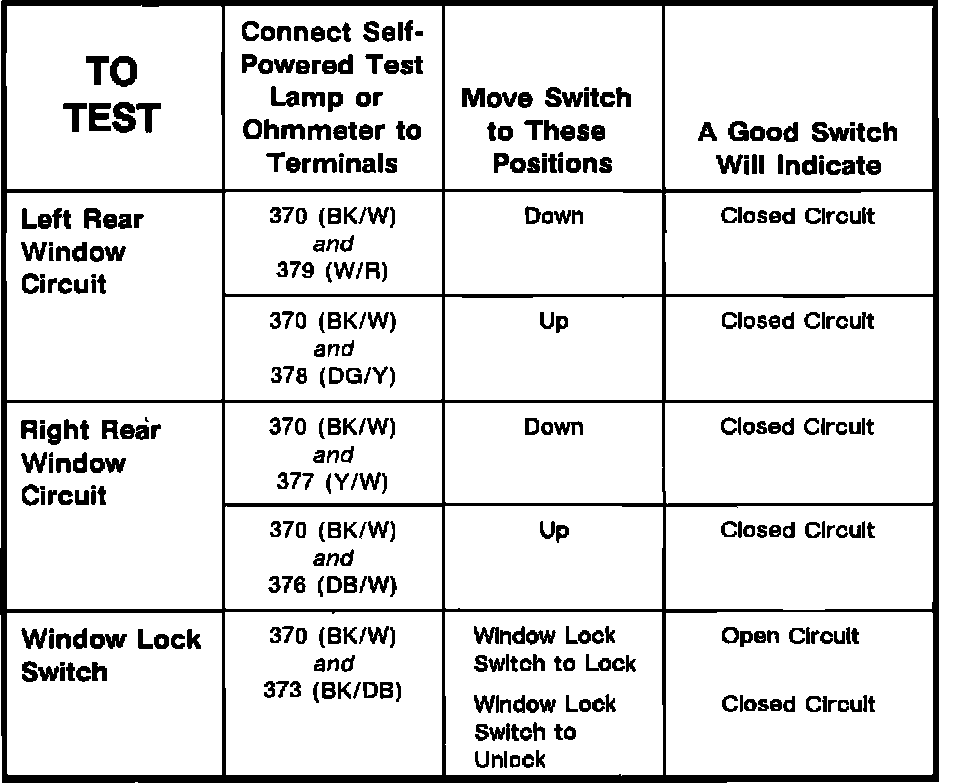

Component Testing Procedure:







TERMINAL IDENTIFICATION

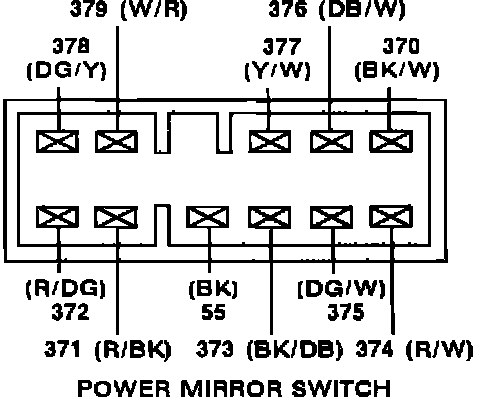

Terminal Locations:







SCHEMATIC

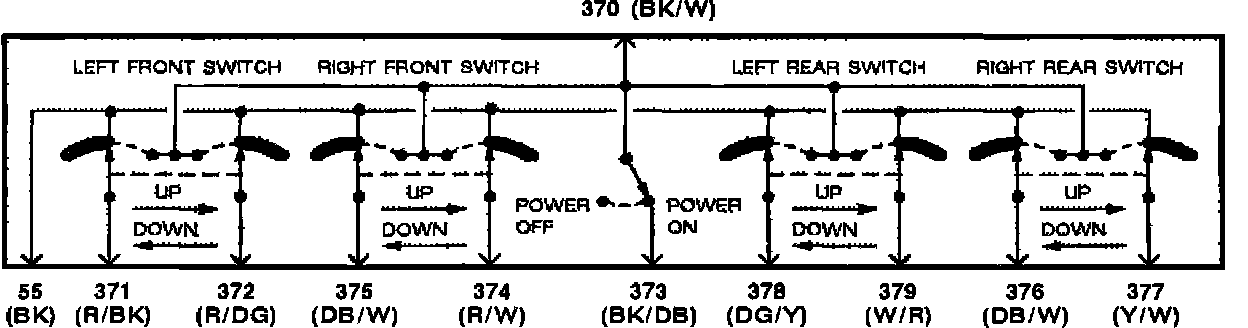

Schematic:
