OP 2 - Operational Test
OP 2 - Operational Test

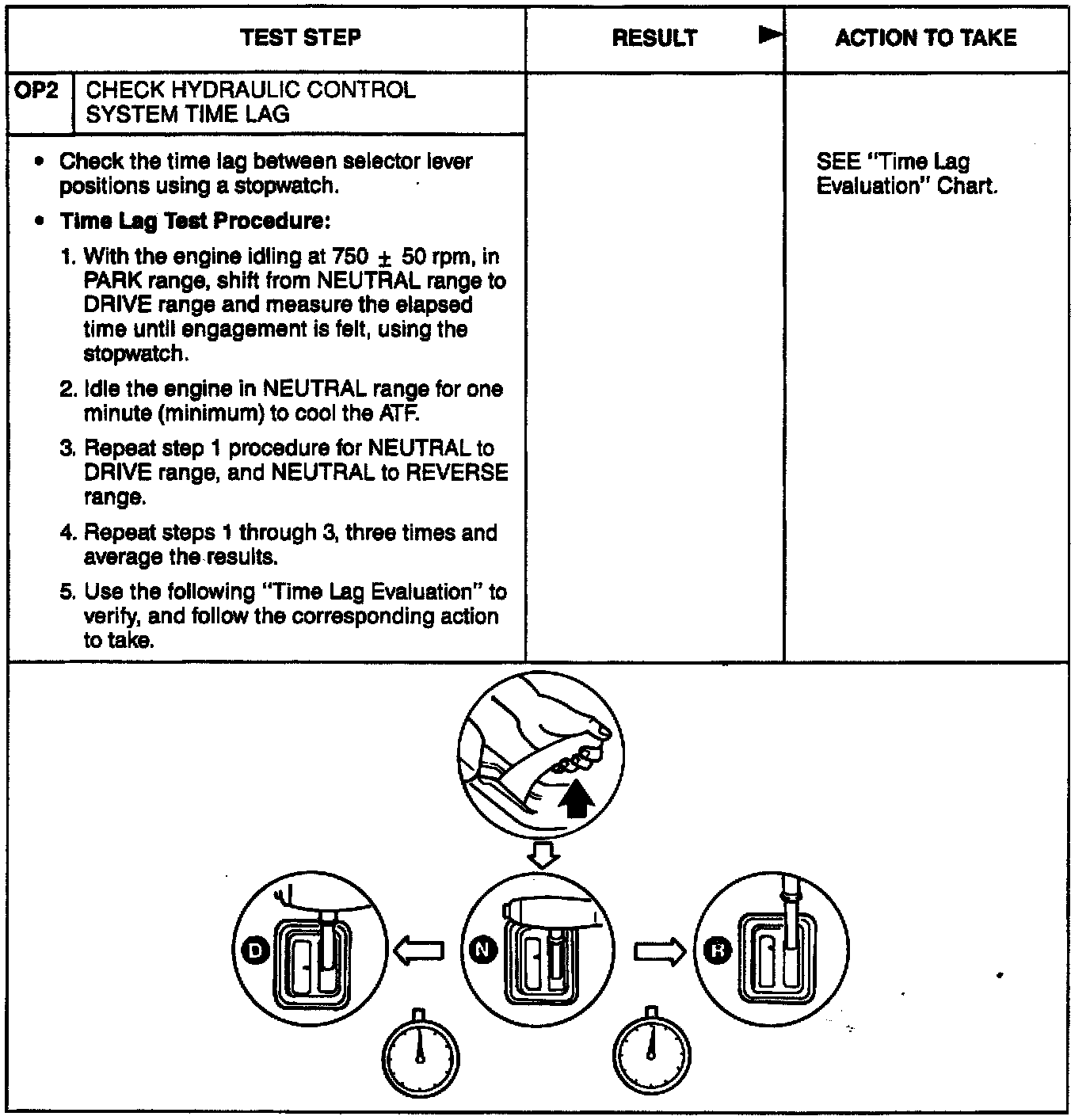

SYSTEM TIME LAG TEST
Operational Test OP 2:

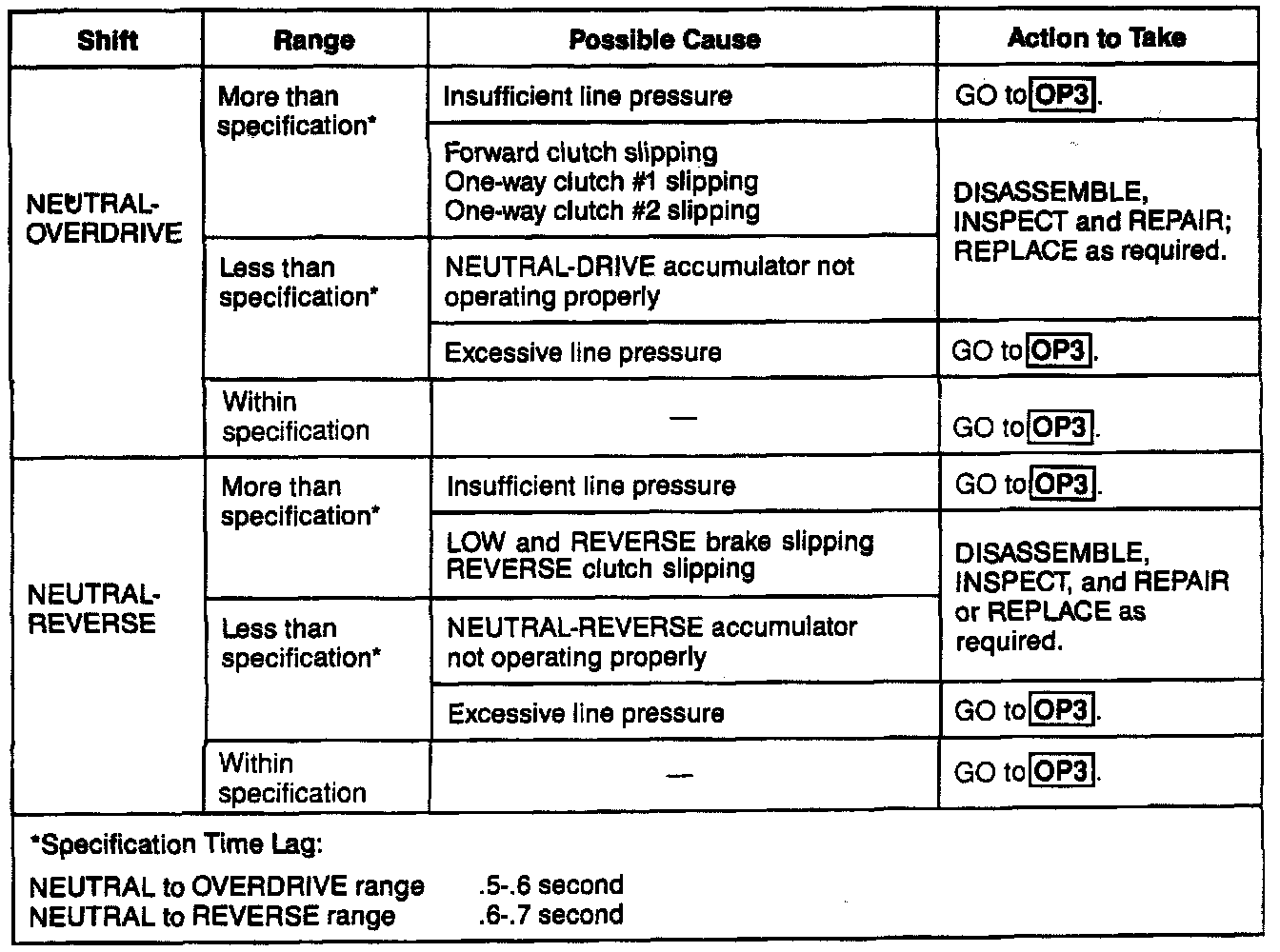

TIME LAG EVALUATION
Time Lag Evaluation:
