Rear Shoulder Belt Retractor, Guide, and Anchor

REMOVAL
1. Remove the speaker and grille assembly.
2. Remove the trunk side trim panel. For the station wagon, also remove the C-pillar trim panel.






3. Remove the rear shoulder belt retractor mounting bolt(s).






4. Remove the rear shoulder belt guide mounting bolt.

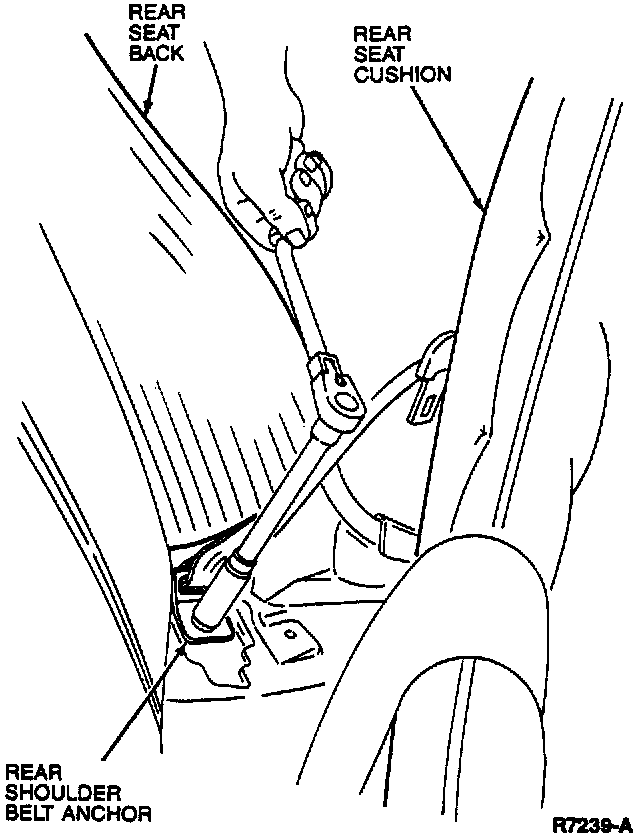

5. Pull up the rear seat cushion to gain access to the rear shoulder belt anchor.






6. Remove the rear shoulder belt anchor mounting bolt and remove the assembly.

INSTALLATION
1. To install, reverse the removal procedure. Refer to the Torque Specifications.
