Ignition Control Module: Locations

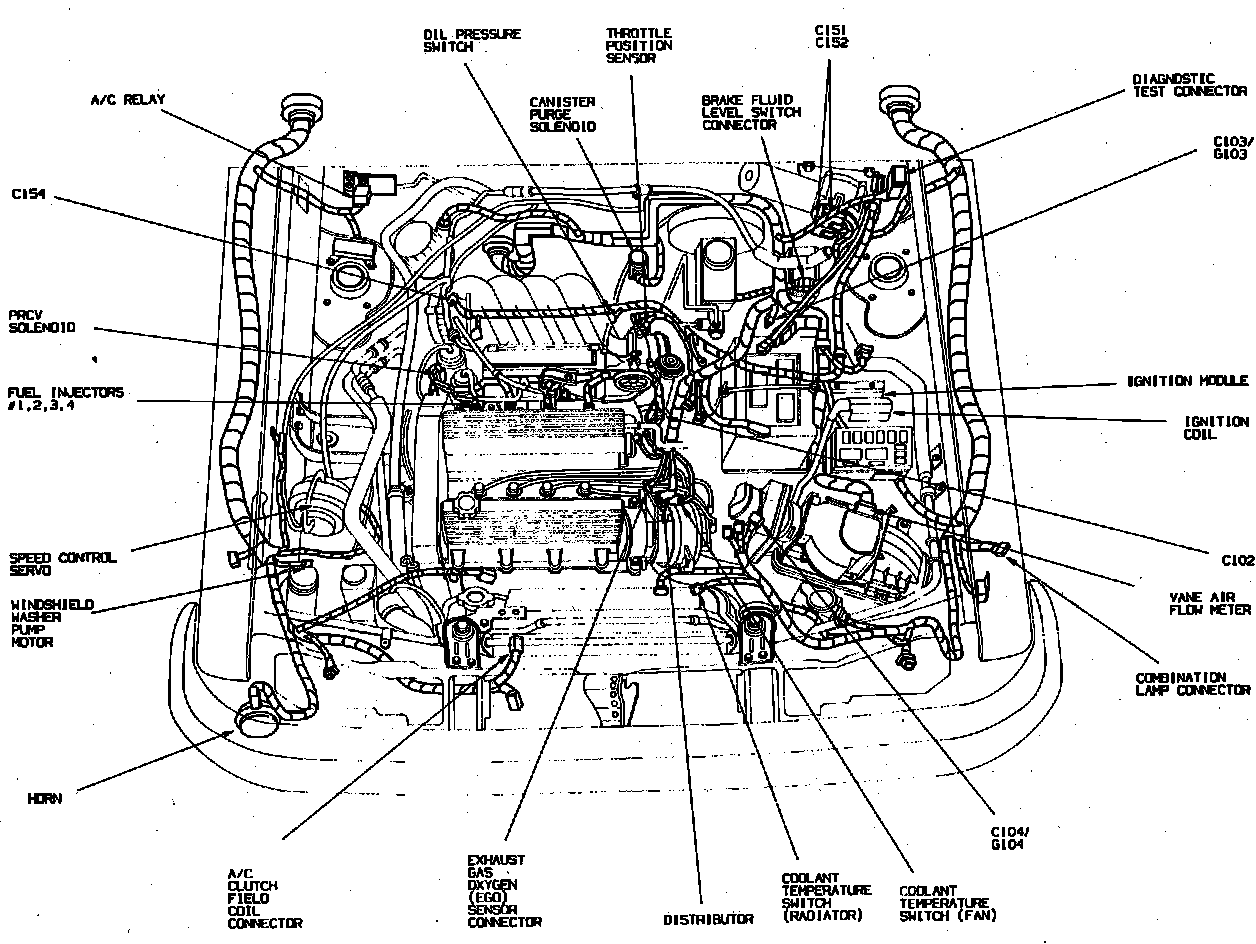

Engine Compartment Components.:

LH Fender Apron

Applicable to: 1991 1.8L

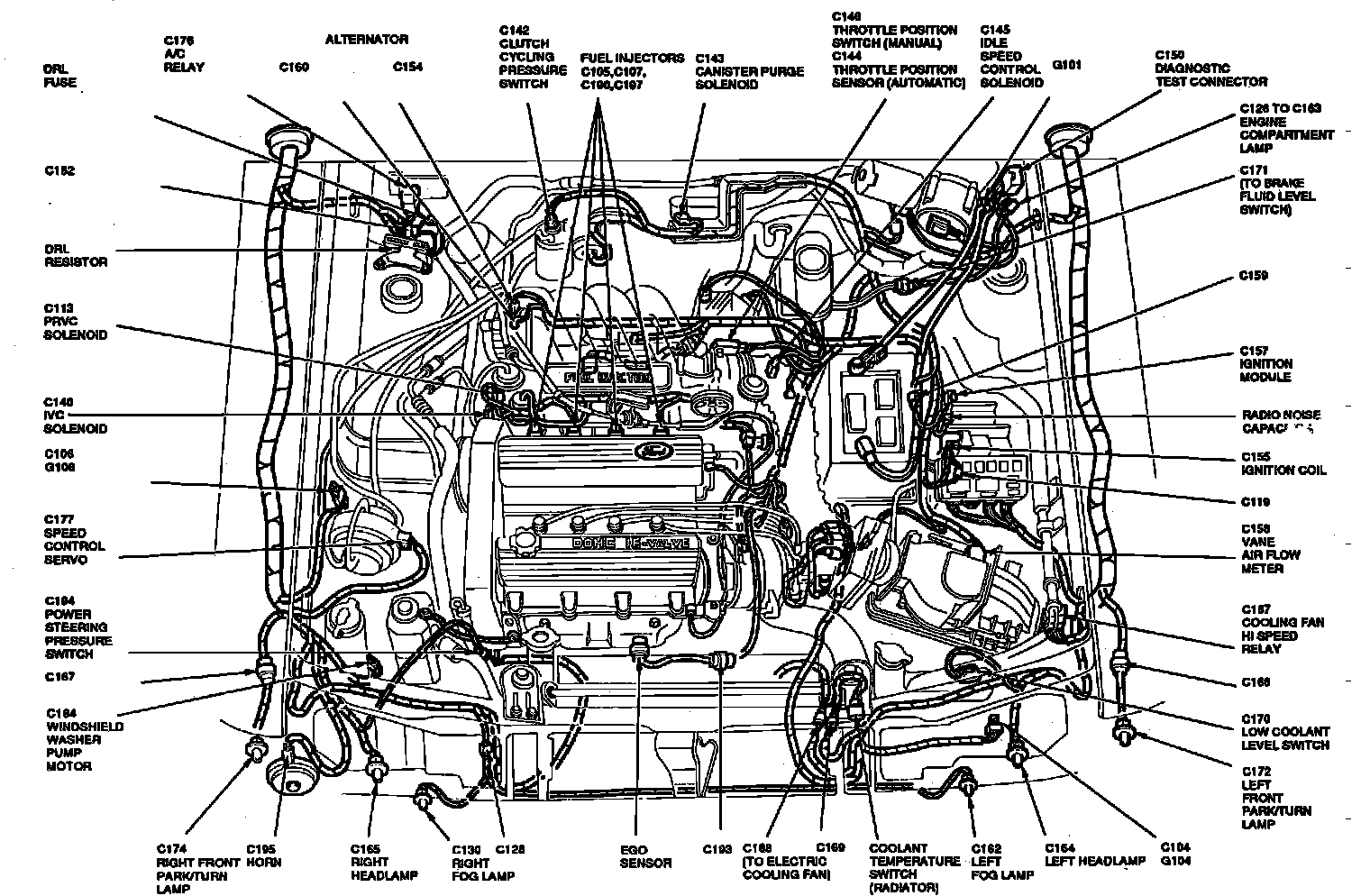

Engine Compartment Components.:

LH Fender Apron

Applicable to: 1992 1.8L
