VAF - Vane Air Flow Sensor
>>

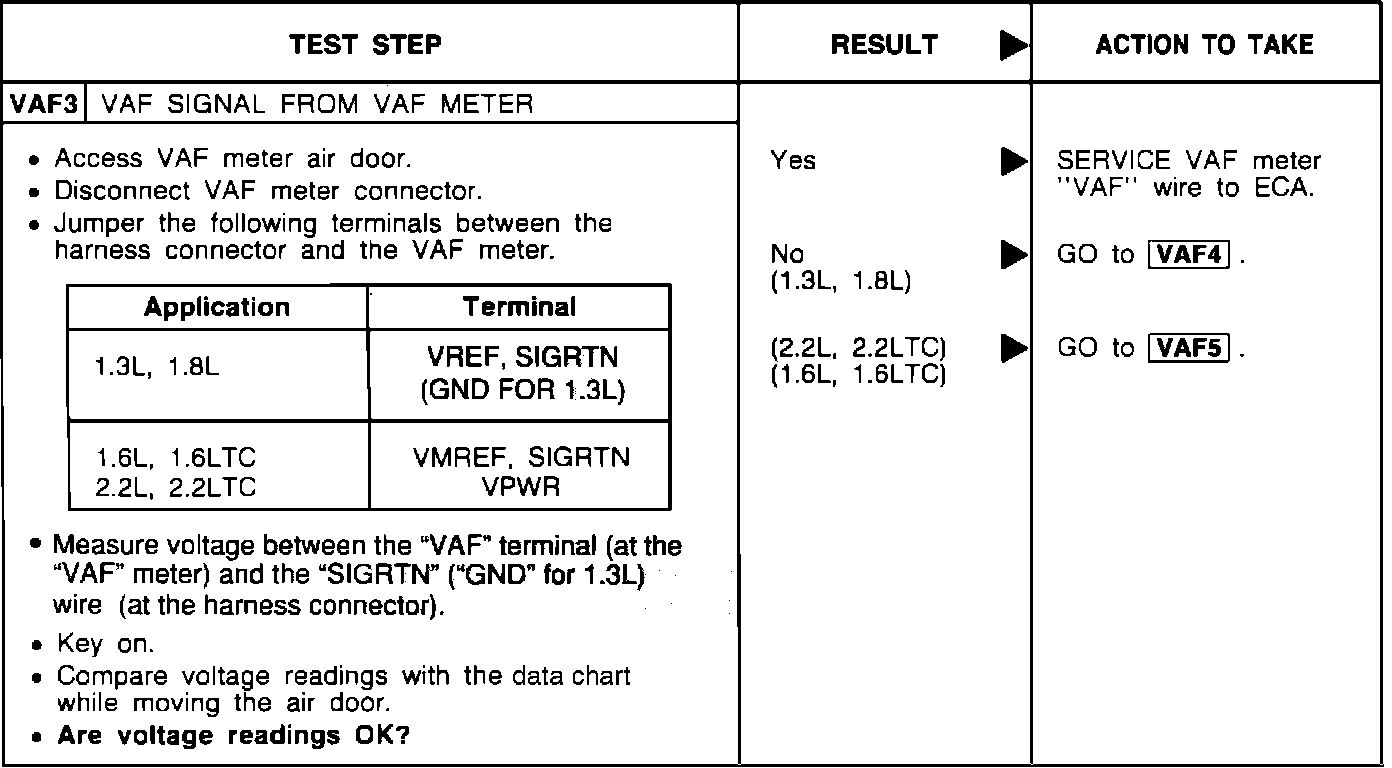

VAF3 - VAF Signal From VAF Meter
VAF3 - VAF Signal From VAF Meter
Pinpoint Test VAF3:
