Home >> Mercury >> 1992 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> MIL - Malfunction Indicator Light (MIL) >> MIL2 - Check For Open

MIL2 - Check For Open

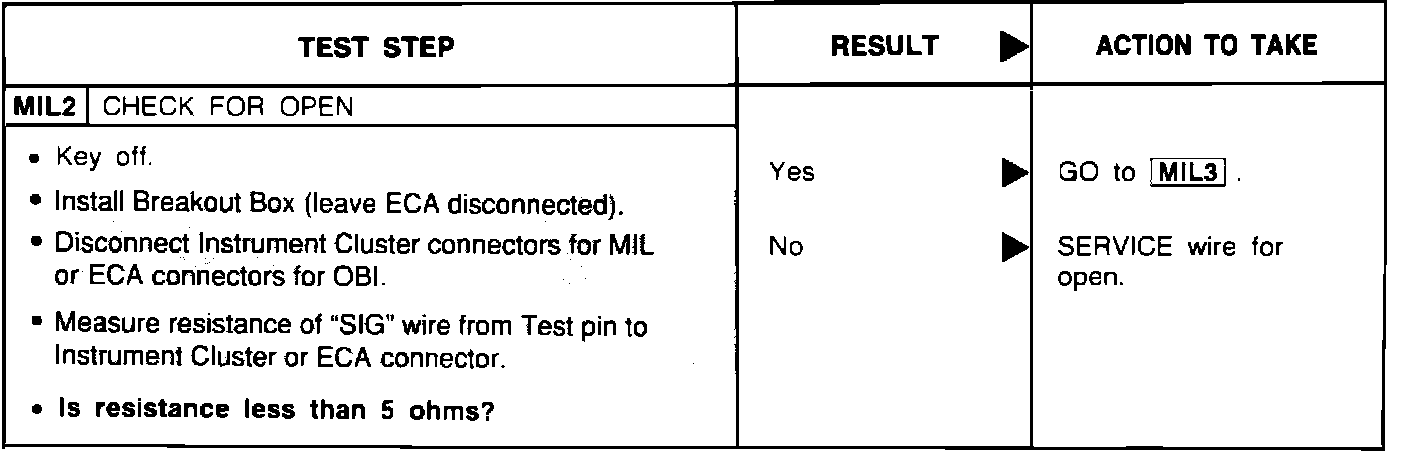

Pinpoint Test MIL2:
