Home >> Mercury >> 1992 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations >> Coolant Temperature Switch (For Computer)

Coolant Temperature Switch (For Computer)

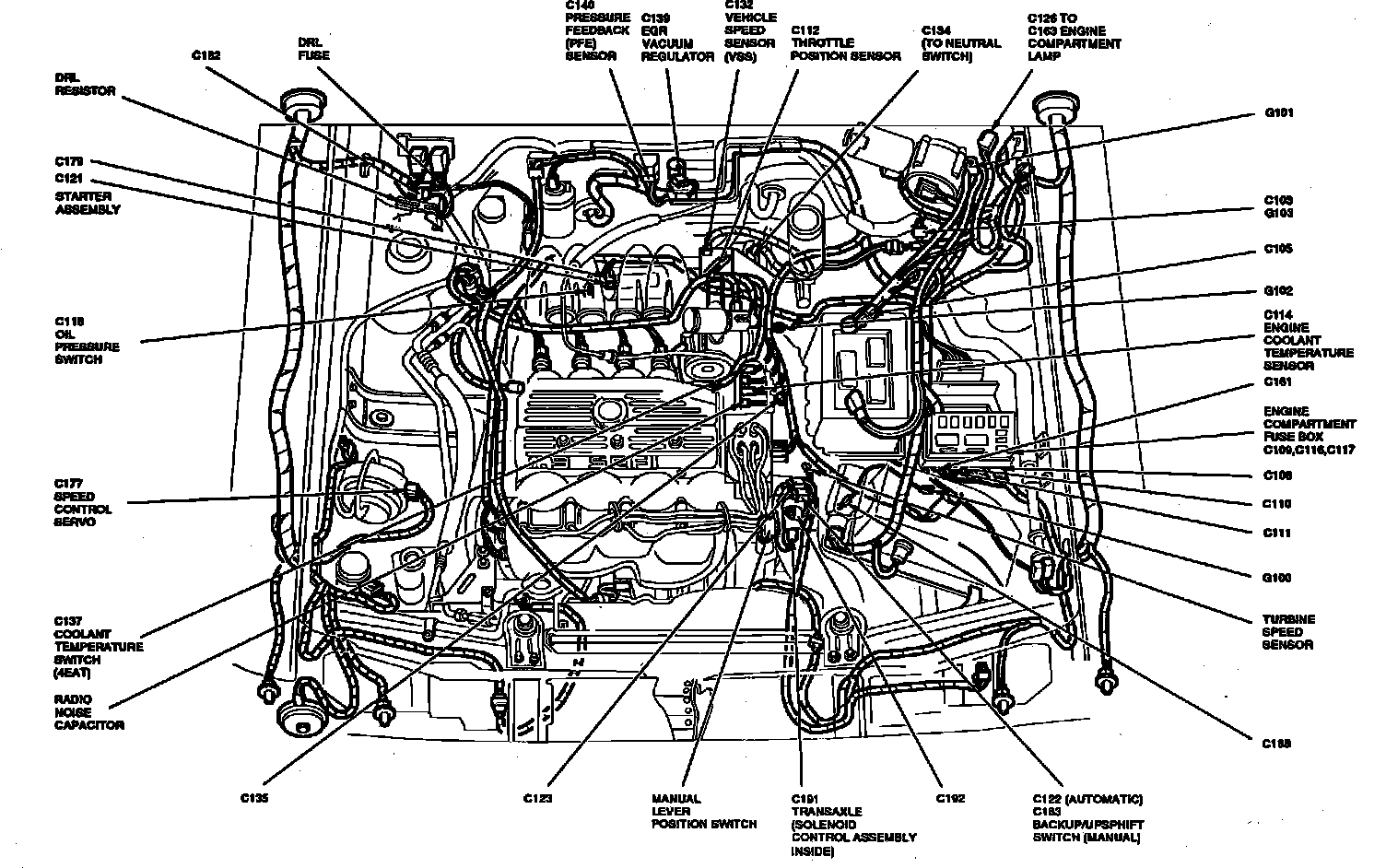

Engine Compartment Components.:




LH Front Of Engine

Applicable to: 1991 1.9L

Engine Compartment Components.:




LH Front Of Engine

Applicable to: 1992 1.9L
