Main Relay (Computer/Fuel System): Locations

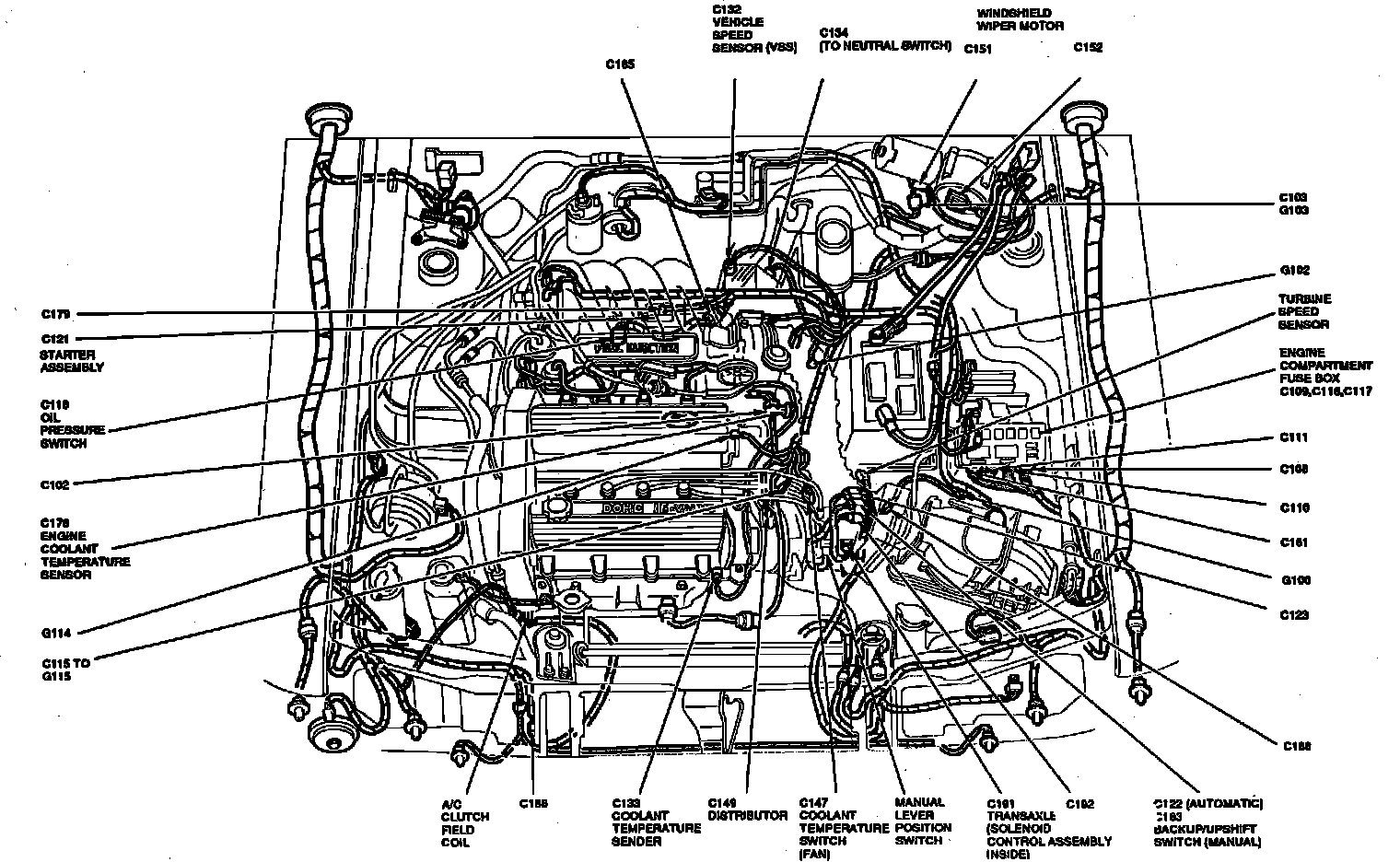

Engine Compartment Components.:

The EGI Relay is on the LH Side of the engine compartment on the fuse box.

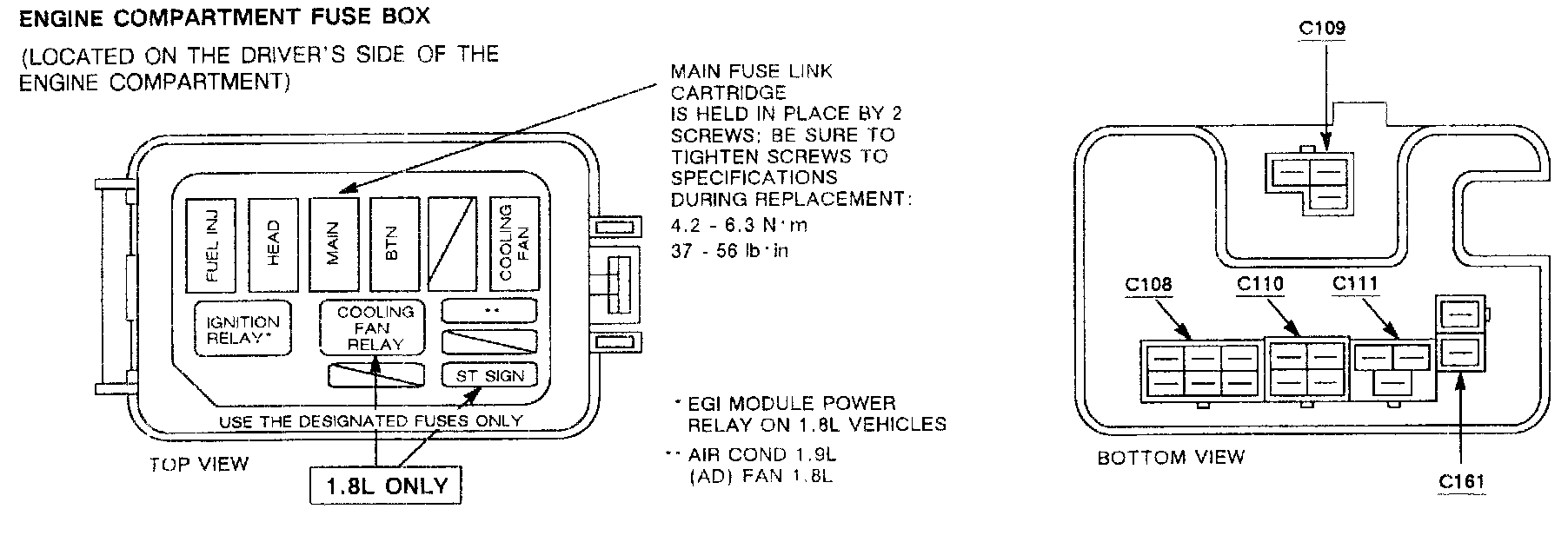

Engine Compartment Fuse Box:

Shown in this image as the Ignition Relay, the footnote confirms this is the EGI Relay.

Note: Do not be confused that connector C1000 is not shown on the bottom of the fuse block, the wiring diagram will clarify that C1000 is valid.
