Attachment III - Technical Instructions
SAFETY RECALL 92S501992 ESCORT/TRACER STOPLAMP SWITCH
TECHNICAL INSTRUCTIONS
SWITCH REMOVAL
1. Disconnect the stoplamp switch electrical connector at the brake pedal.

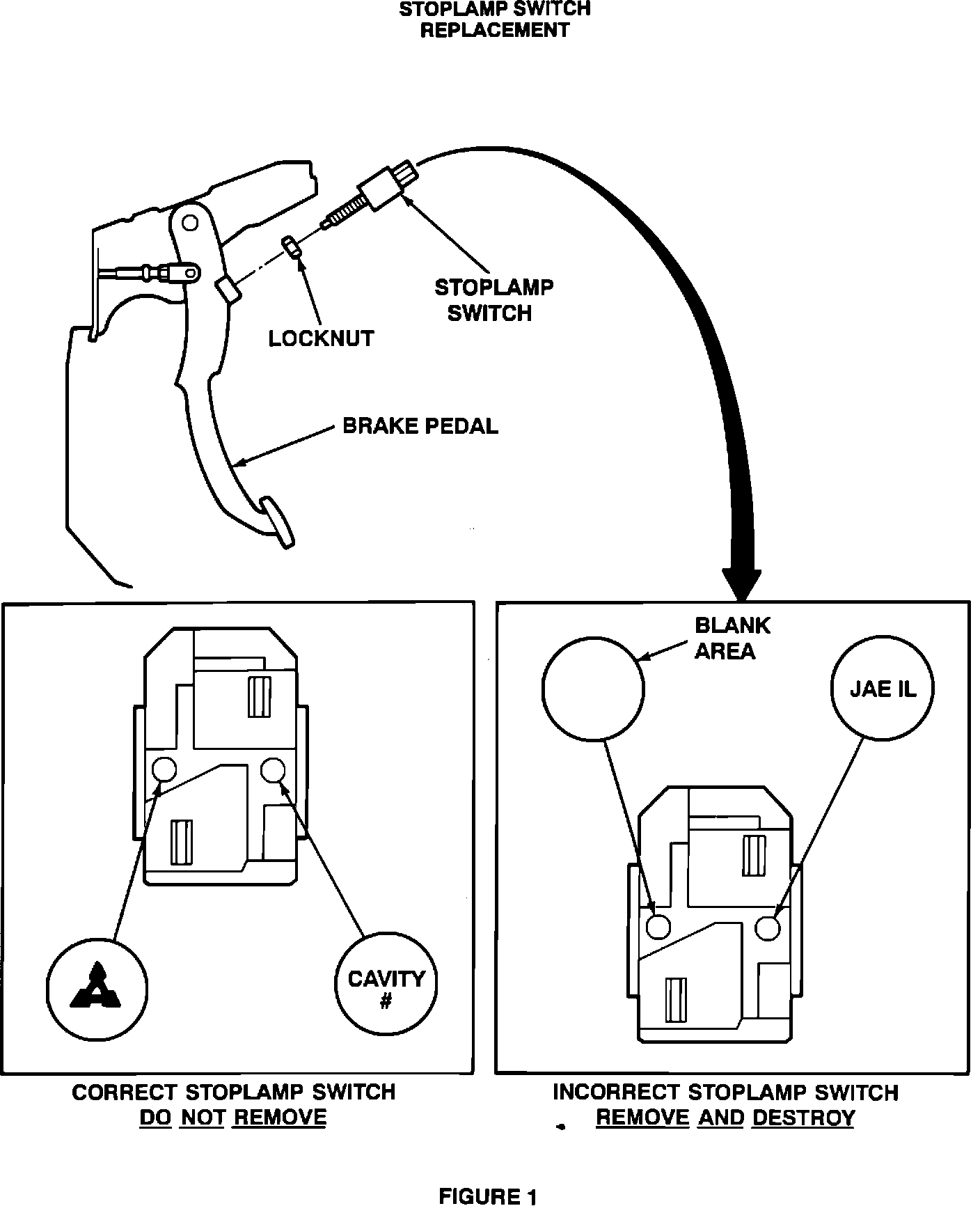

2. Loosen the stoplamp locknut and remove the switch from the brake pedal assembly for inspection (figure 1)
SWITCH LAMP INSPECTION
^ Inspect the switch cavity for the JAE IL letters (See Figure 1).
^ If the JAE IL symbol is found, REMOVE AND DESTROY the switch to prevent re-use in service.
^ Install a new switch following the instructions below.
^ If the letters JAE IL are not found, do not replace the switch; reinstall it following the instructions below.
SWITCH INSTALLATION
^ Install the switch in the brake pedal assembly.
^ Turn the switch until it contacts the brake pedal, then turn it in an additional half turn.
^ Tighten the switch locknut to 14-17 N-m (10-13 lb.ft.).
^ Connect the switch electrical connector.
^ Verify the operation of the stoplamp switch.
