Control Assembly: Testing and Inspection

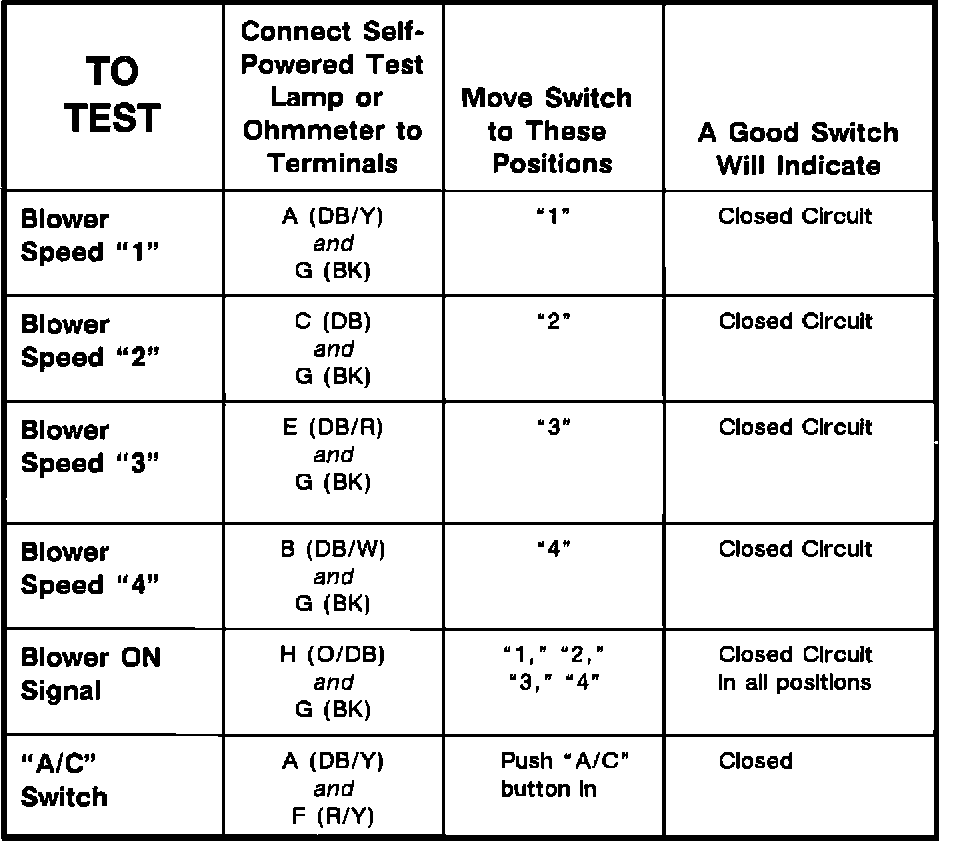

COMPONENT TESTING PROCEDURE

Component Testing Procedure:







TERMINAL IDENTIFICATION


Terminal Locations:

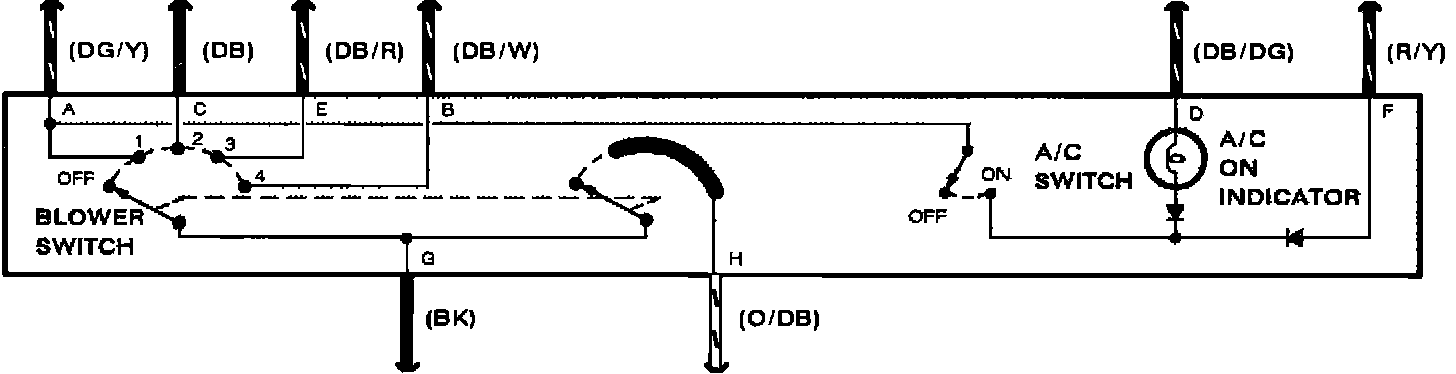

SCHEMATIC


Schematic:
