Home >> Mercury >> 1992 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Radiator Cooling Fan >> Radiator Cooling Fan Motor >> Testing and Inspection >> Pinpoint Tests >> Test Step EC7

Test Step EC7

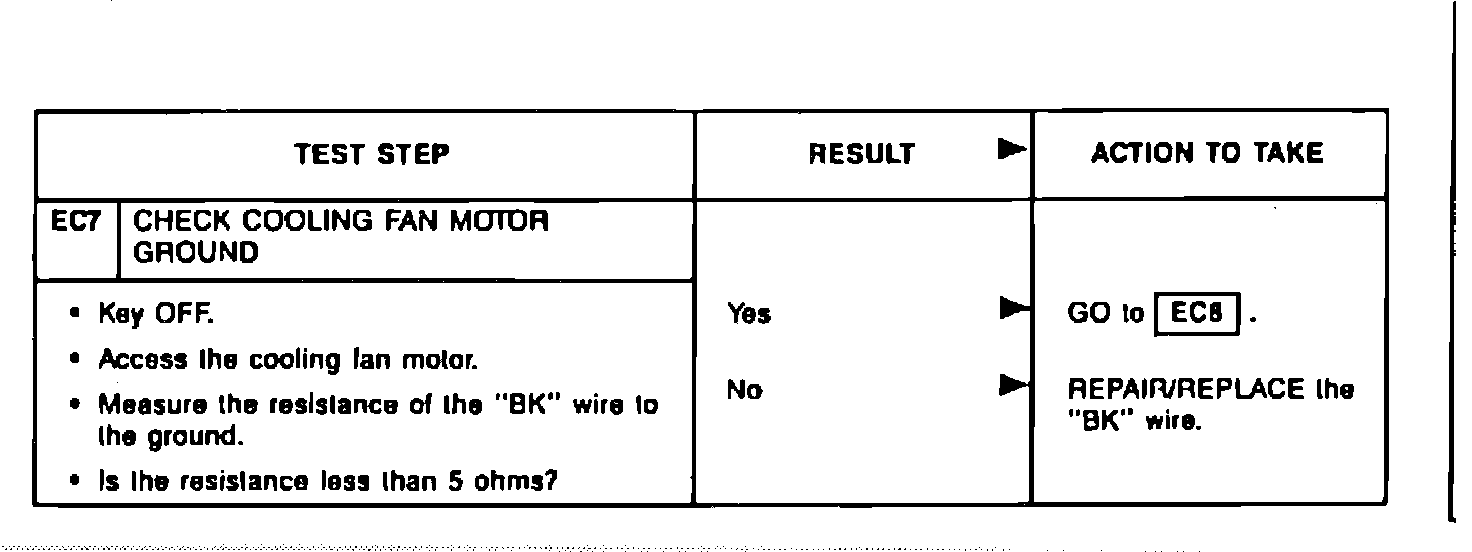

Fig. 31 Diagnostic Test Step EC7 (Part 7 Of 11):
