Home >> Mercury >> 1992 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Radiator Cooling Fan >> Radiator Cooling Fan Motor >> Testing and Inspection >> Pinpoint Tests >> Test Step EC11

Test Step EC11

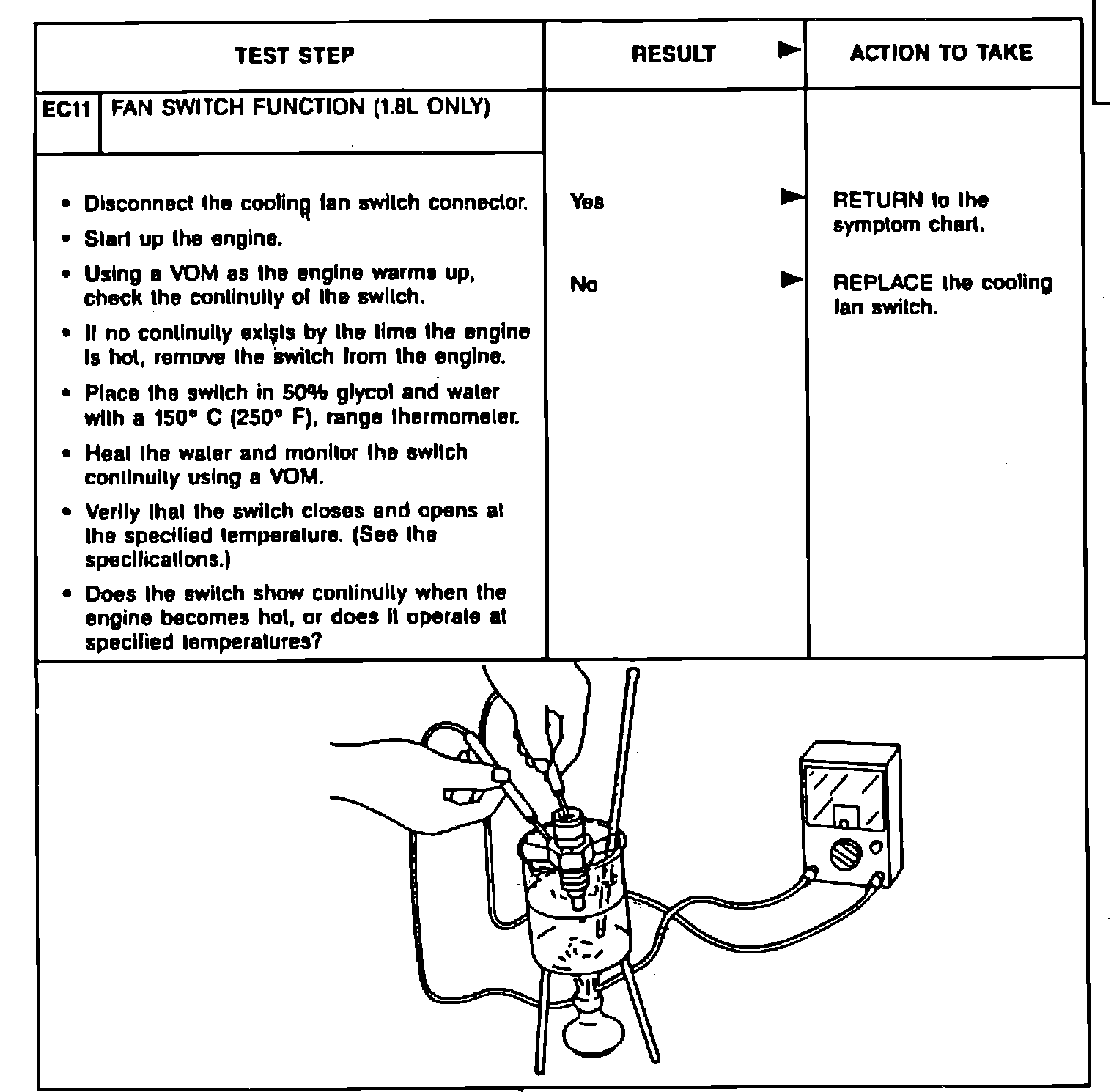

Fig. 31 Diagnostic Test Step EC11 (Part 11 Of 11):
