Home >> Mercury >> 1992 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> G300 >> 3 & 5 Door Hatchback

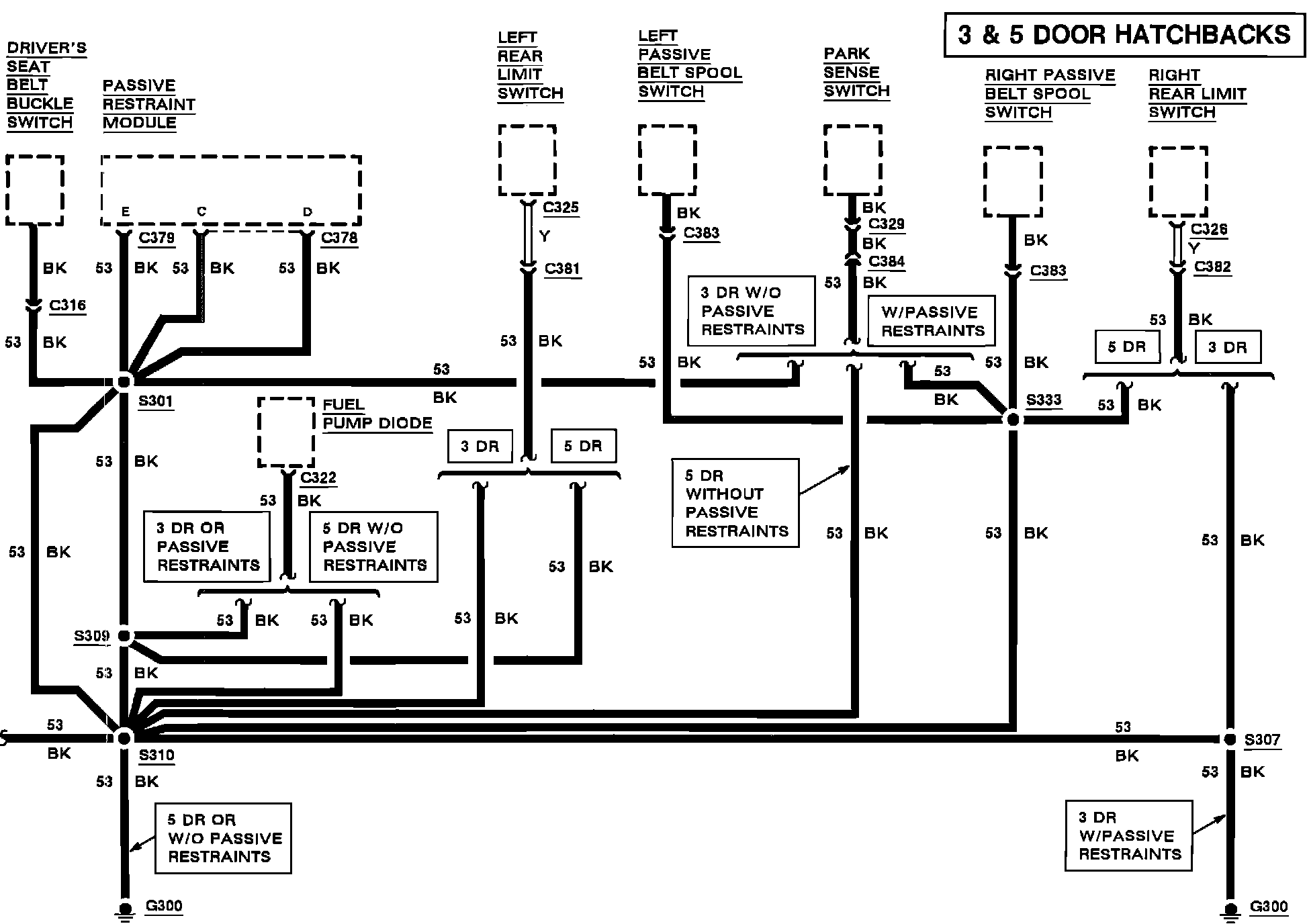

3 & 5 Door Hatchback

Grounds:
