Mirrors: Testing and Inspection


TROUBLESHOOTING

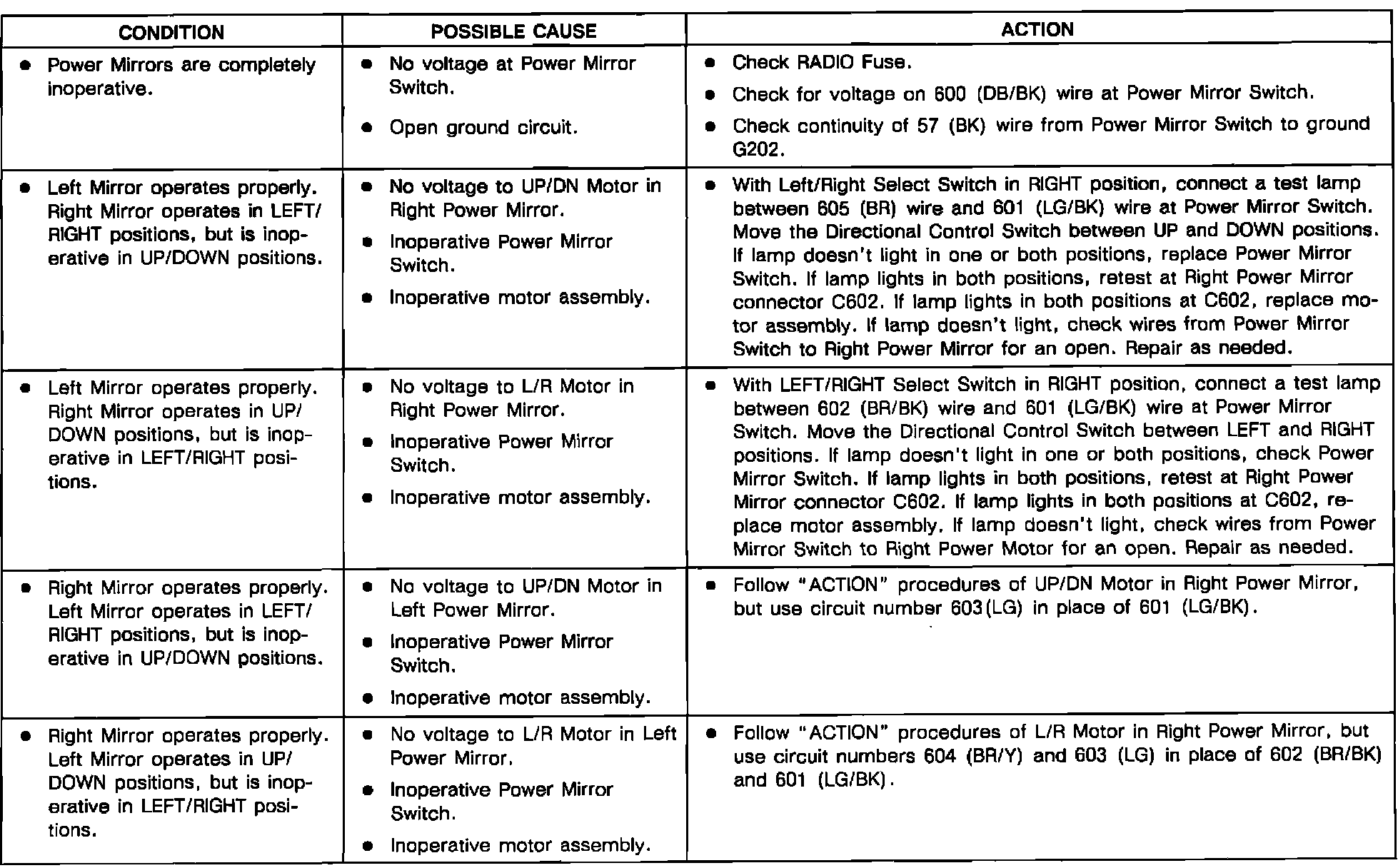

Troubleshooting Hints:







COMPONENT TESTING PROCEDURE

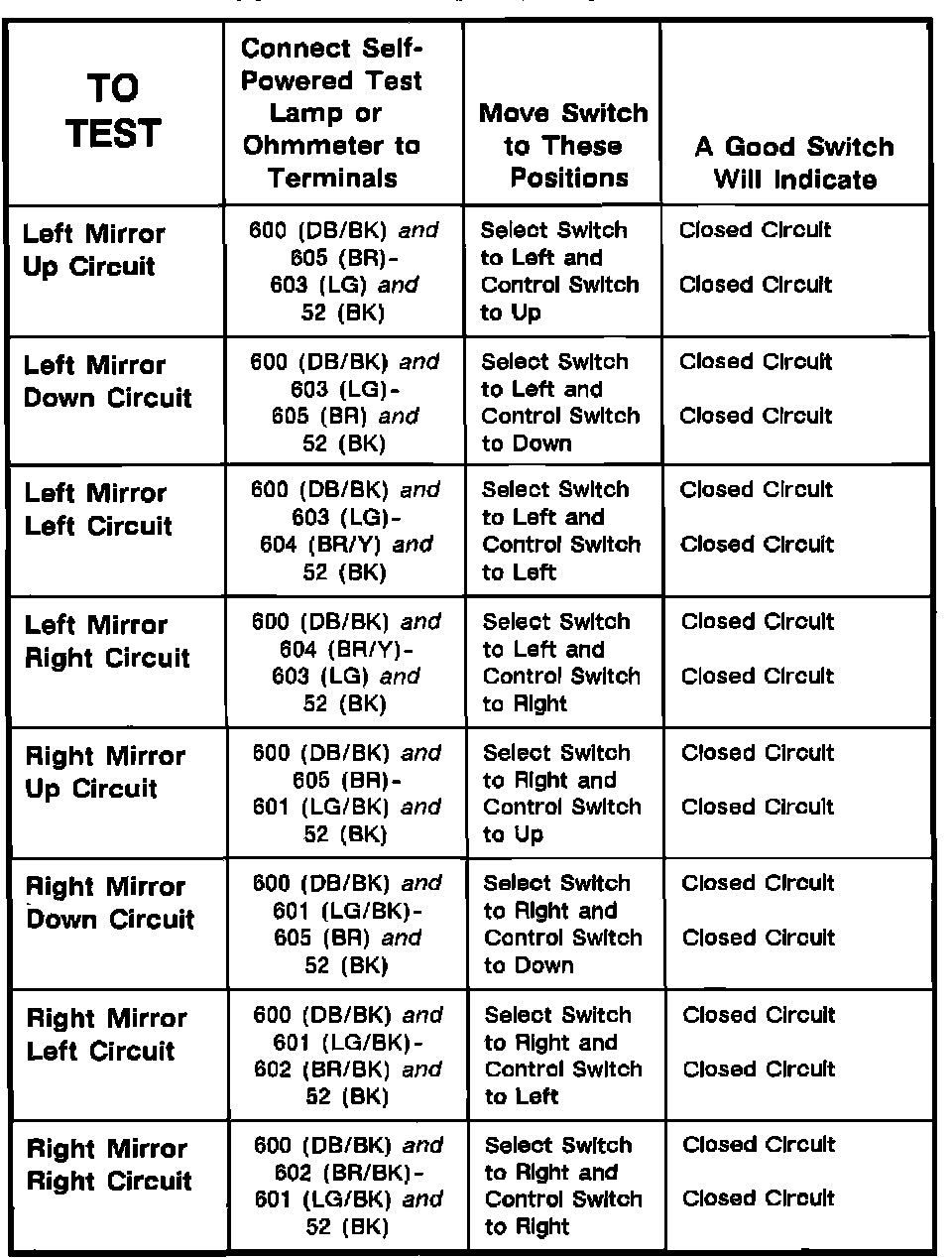

Component Testing Procedure:







TERMINAL IDENTIFICATION


Terminal Locations:







SCHEMATIC

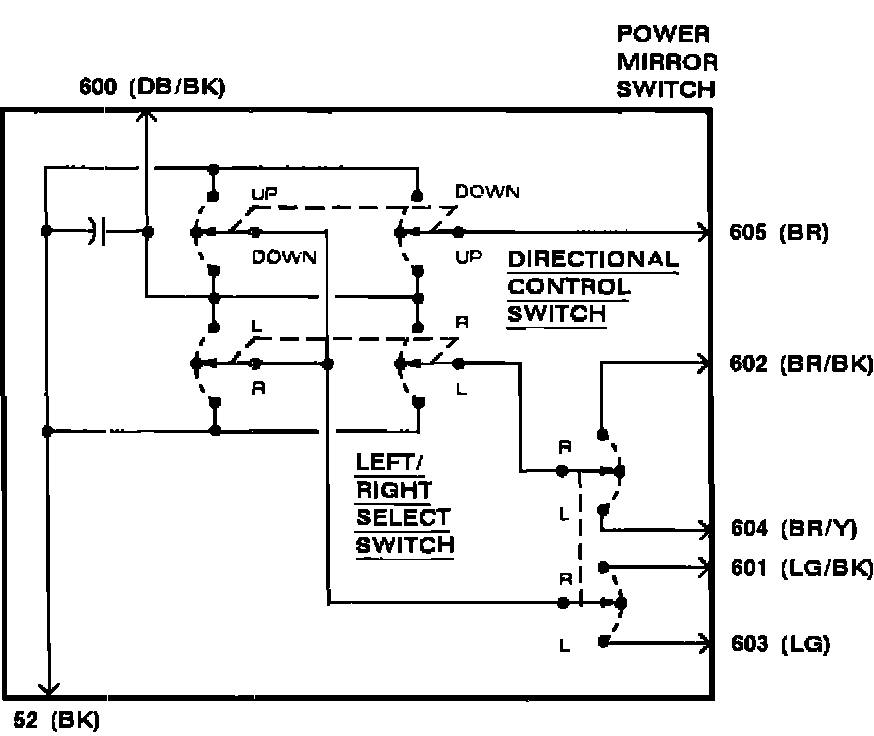

Schematic:
