Power Steering Pressure Switch: Locations

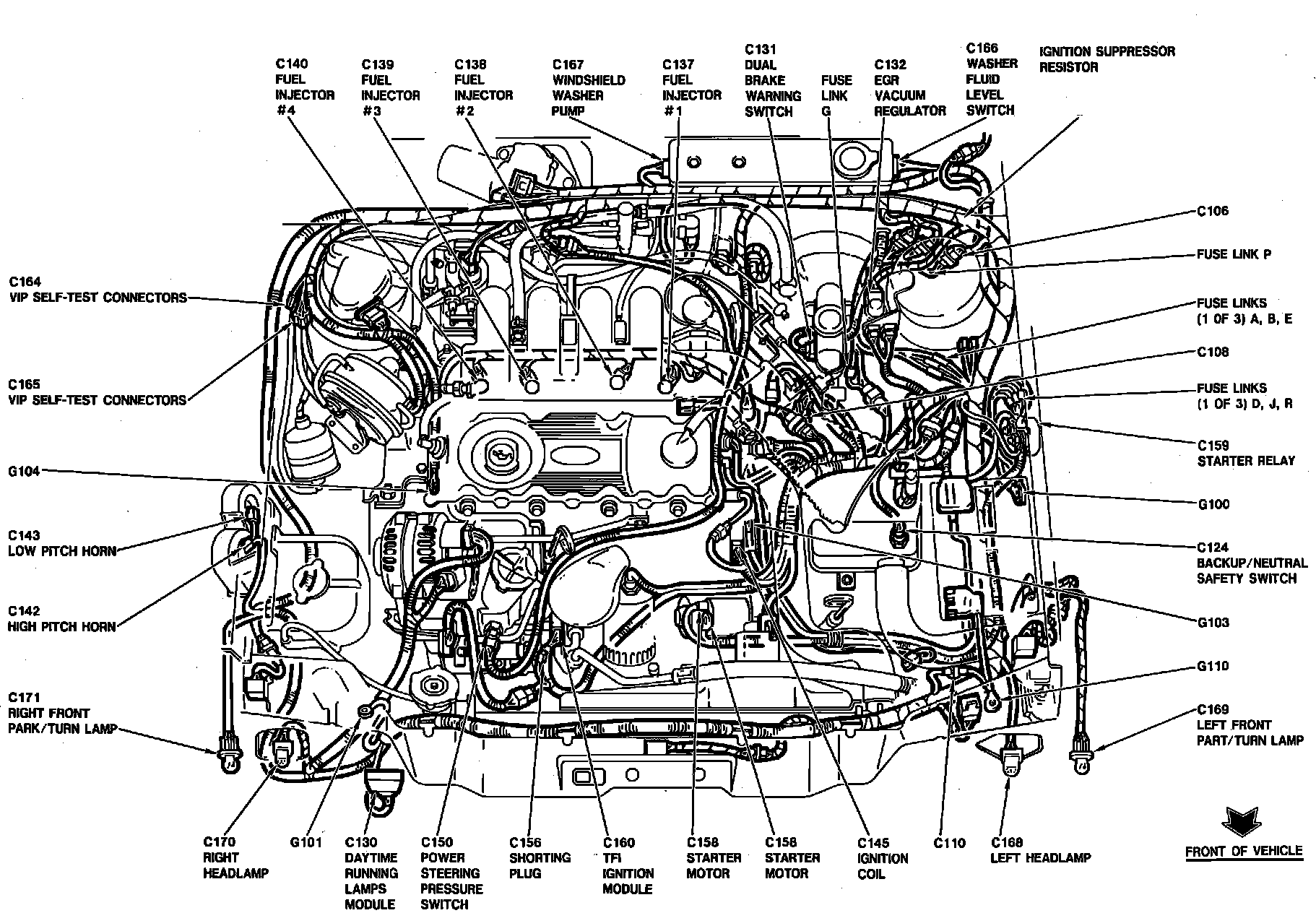

Engine Compartment Components.:




Top RH Side Of Engine, In Power Steering Hose

Applicable to: 1991 2.3L/4-140

Engine Compartment Components.:




Top RH Side Of Engine, In Power Steering Hose

Applicable to: 1992 2.3L/4-140

Engine Compartment Components.:




Top RH Side Of Engine, In Power Steering Hose

Applicable to: 3.0L/V6-181
