J - DTC 32: High Resistance/Open In Drivers Airbag Circuit
J - DTC 32: High Resistance/Open In Drivers Airbag Circuit

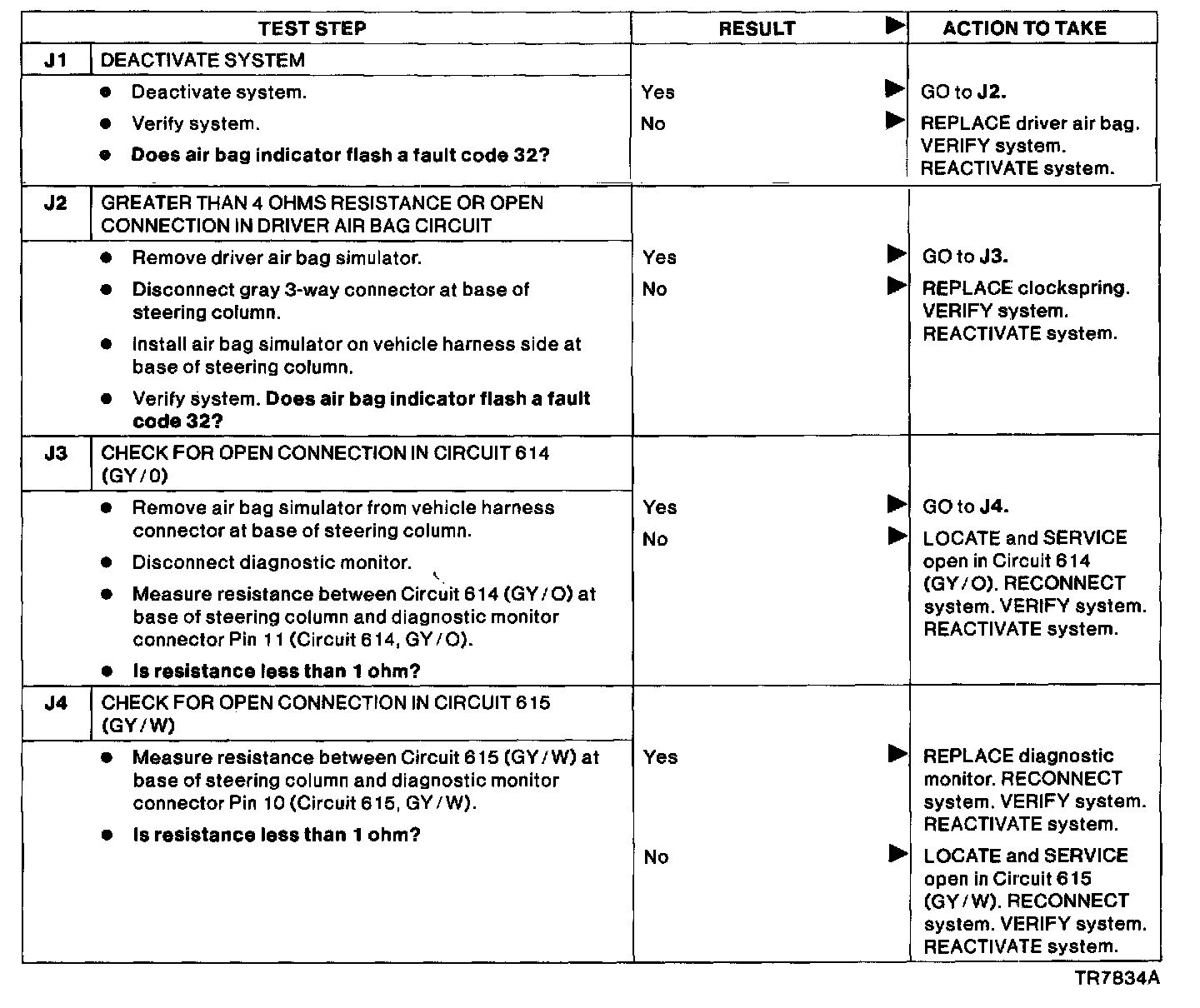

J1 - J4:
