Component Tests and General Diagnostics

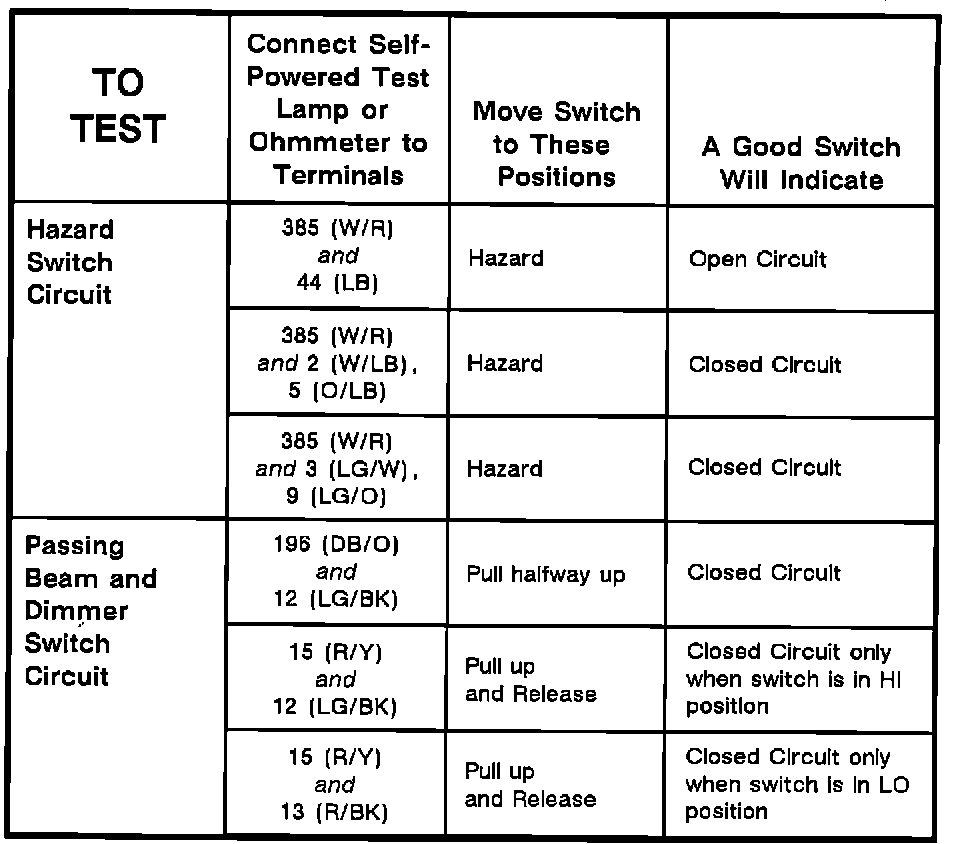

COMPONENT TESTING PROCEDURE


Component Testing Procedure:

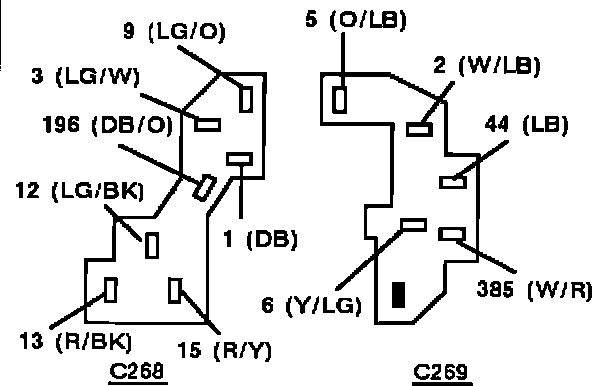

Terminal Locations:






TERMINAL IDENTIFICATION


Terminal Locations:






SCHEMATIC


Schematic:
