Inspection and Verification (Start Testing Here)

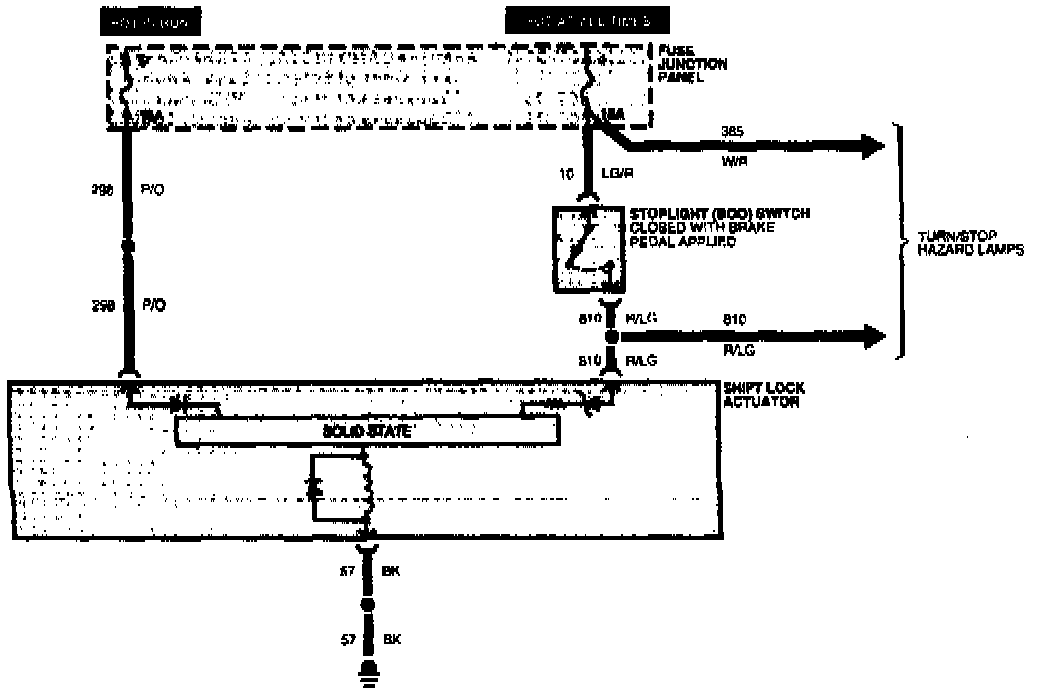

DIAGNOSIS AND TESTINGBrake Shift Interlock System Wiring Circuit:
1. Refer to the Brake Shift Interlock System Wiring Circuit for brake shift interlock system wiring.

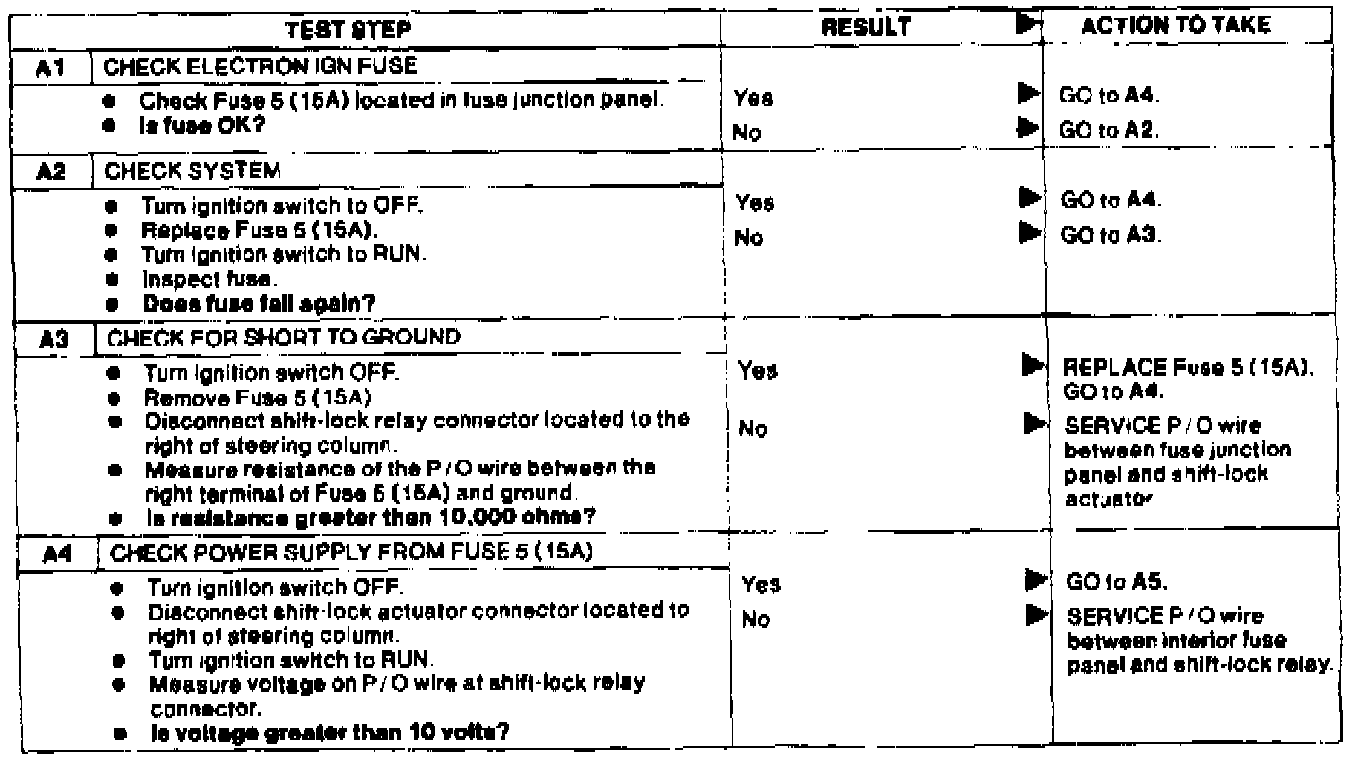

Brake Shift Interlock System Troubleshooting Chart (Part 1 Of 2):
Brake Shift Interlock System Troubleshooting Chart (Part 2 Of 2):
2. Refer to the Brake Shift Interlock System Troubleshooting Chart for brake shift interlock system diagnosis.
