With Floor Shift

Floor Shift













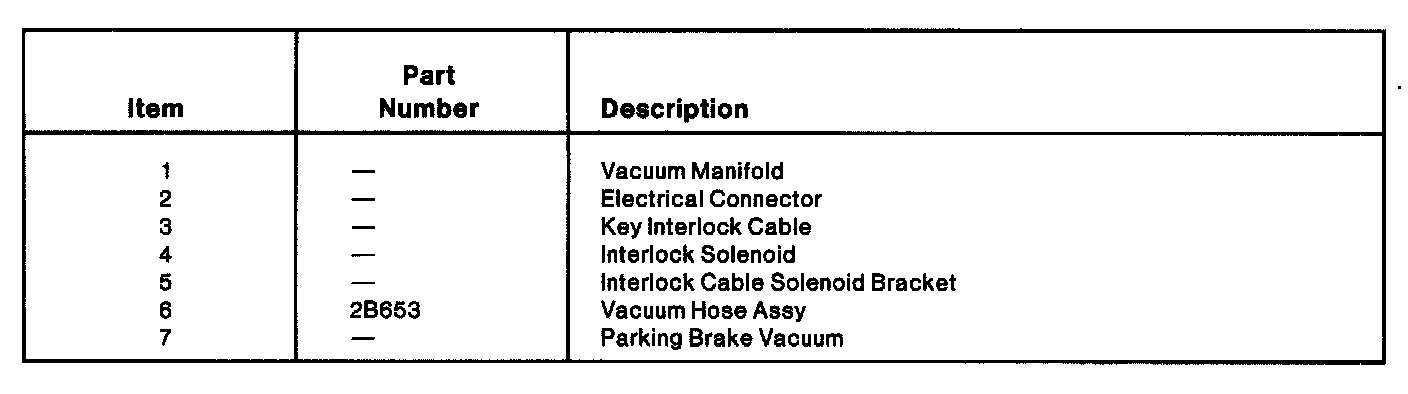

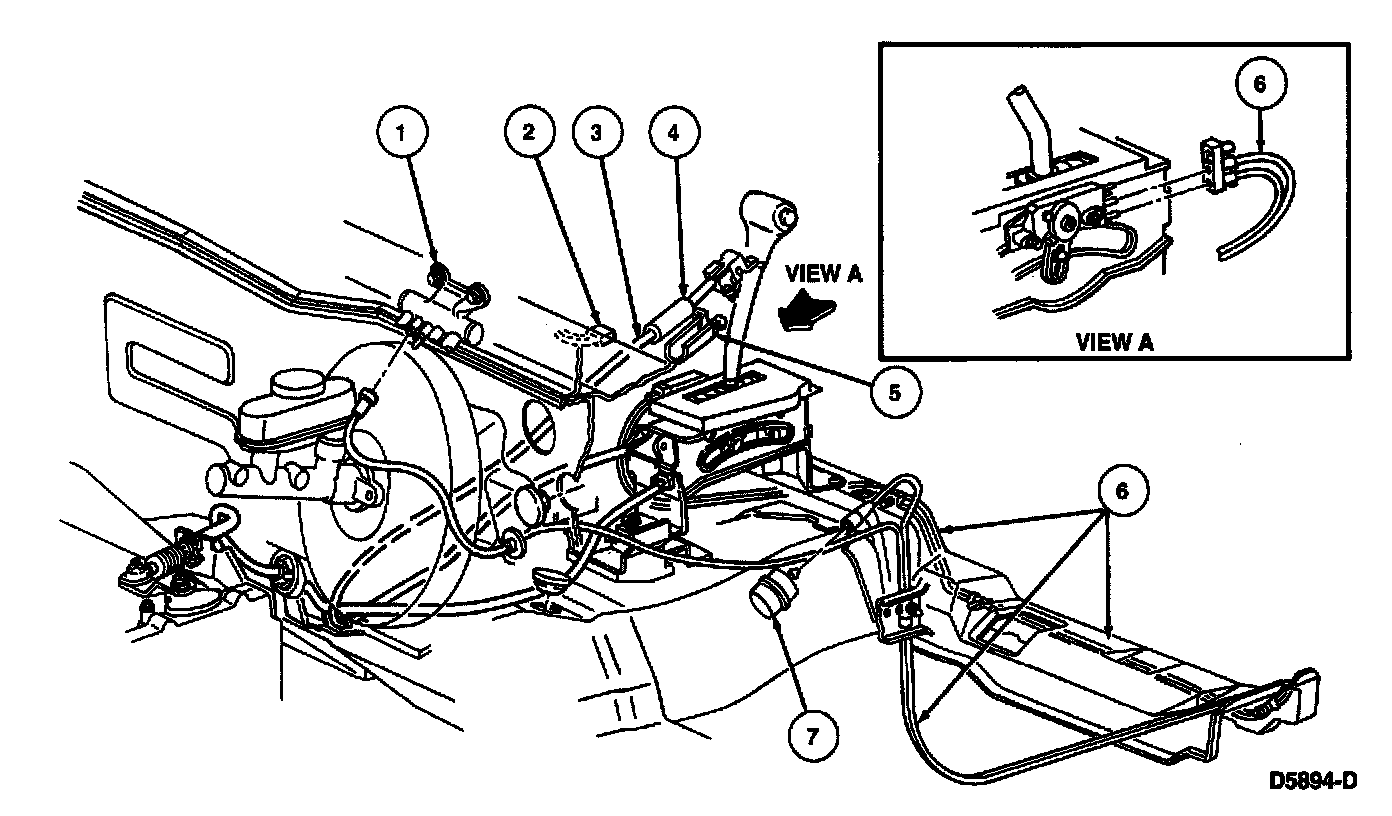

Shift Control Cable Assembly

Removal

1. Remove console. Disconnect cable and remove shifter assembly as outlined.
2. Pull back carpeting.

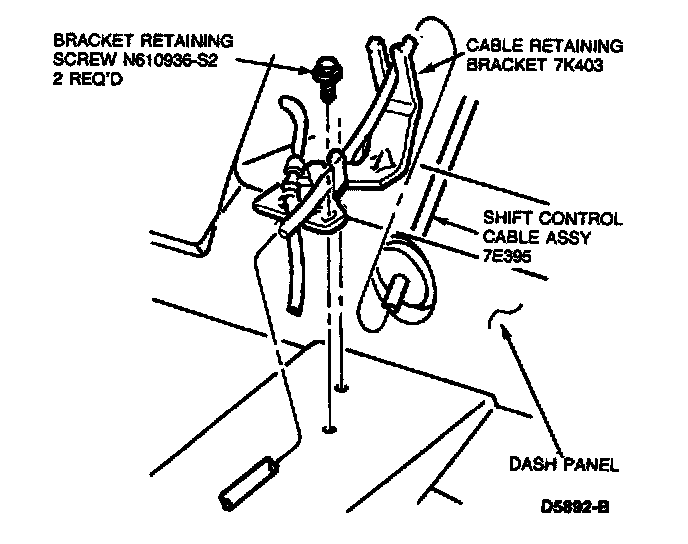

3. Remove cable bracket to dash panel retaining screw.







4. Disengage rubber grommet from floorpan by pushing it toward passenger compartment.
5. Remove retaining nut and control cable assembly from transaxle lever.
6. Remove cable retaining clip from cable bracket on transaxle.







7. Remove control cable assembly from bracket.
8. Pull cable through floorpan into passenger compartment.

Installation

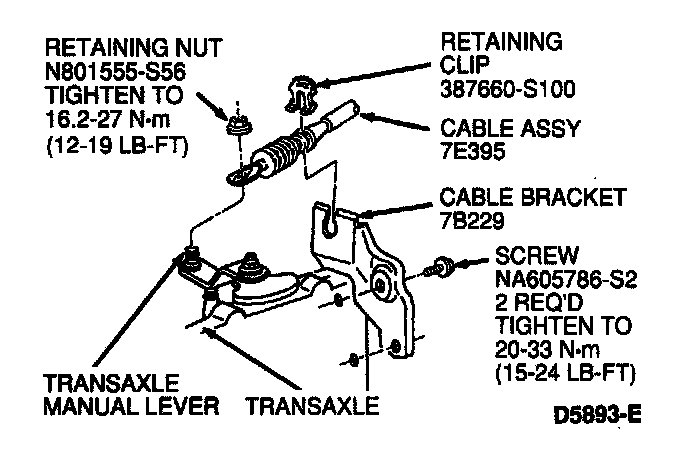

1. From inside the passenger compartment, feed round end of control cable assembly through floorpan.
2. Press rubber boot on control cable assembly into body panel opening. Install cable bracket and carpeting.
3. Install bushing and control cable assembly into snap retainer on selector lever and housing assembly shaft.
4. Position control cable assembly in selector lever housing assembly. Install retaining screws.
5. Install shifter assembly as outlined.
6. Place selector lever in OVERDRIVE position against rearward stop. The selector lever must be held in the rearward position while attaching other end of control cable assembly. Position cable into cable bracket on transaxle and install retainer clip.
7. Attach cable to transaxle lever and install retaining nut.
8. Shift transaxle lever into OVERDRIVE position, second detent from full rearward position.
9. Place cable end on transaxle manual lever stud, using care to align flats on stud with slot in cable. Start retaining nut.
10. Make sure selector lever has not moved from OVERDRIVE detent, then tighten nut.
11. Check transaxle operation in each selector lever detent position. Ensure park mechanism and neutral start switch function properly.
