Oil Pressure Sender: Service and Repair

Removal

1. Remove washer solvent/coolant recovery bottle.
2. Release drive belt tension and position drive belt aside.
3. Remove belt idler pulley below power steering pump.

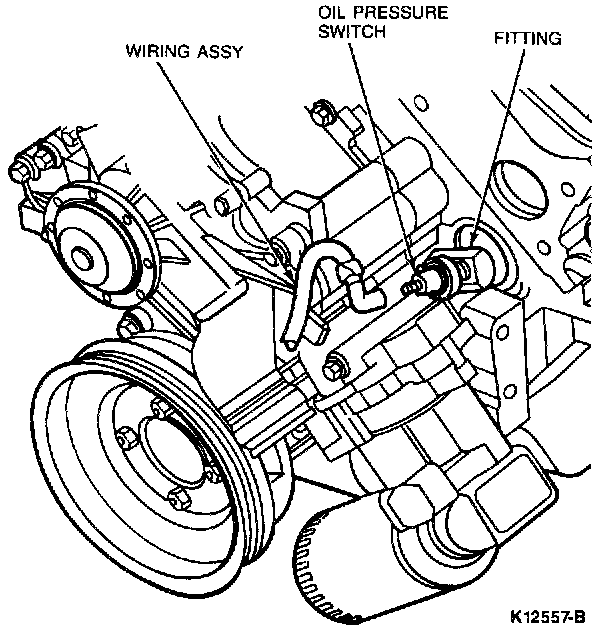

4. Disconnect wire from oil pressure switch and remove switch using Removal/Replacer Tool T87L-9278-A or equivalent.

Installation

1. Apply Pipe Sealant with Teflon(r) D8AZ-19554-A or equivalent to threads of oil pressure switch. Install switch using Removal/Replacer Tool T87L-9278-A or equivalent. Tighten to 11-24 Nm (8-18 lb ft).
2. Install idler pulley. Tighten bolt to 70-95 Nm (52-70 lb ft).
3. Install drive belt.
4. Install washer solvent/coolant recovery bottle. Top off fluids.
5. Start engine and check for leaks.
