KM - WOT A/C Cut-Off (WAC) A/C Demand
>>
KM60 - Check ACD Circuit Continuity to Low Pressure Switch
KM60 - Check ACD Circuit Continuity to Low Pressure Switch

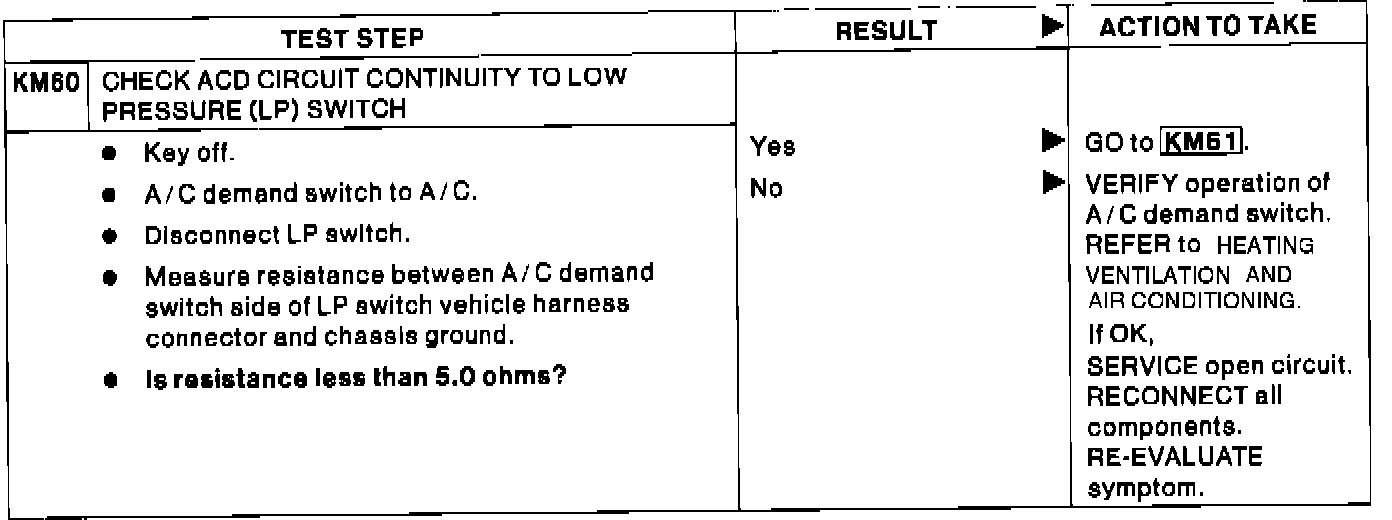

Pinpoint Test KM60:
