Home >> Mercury >> 1992 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> J - Fuel Pump Circuit >> J9 - Check Fuel Pump Circuit For Short to Power

J9 - Check Fuel Pump Circuit For Short to Power

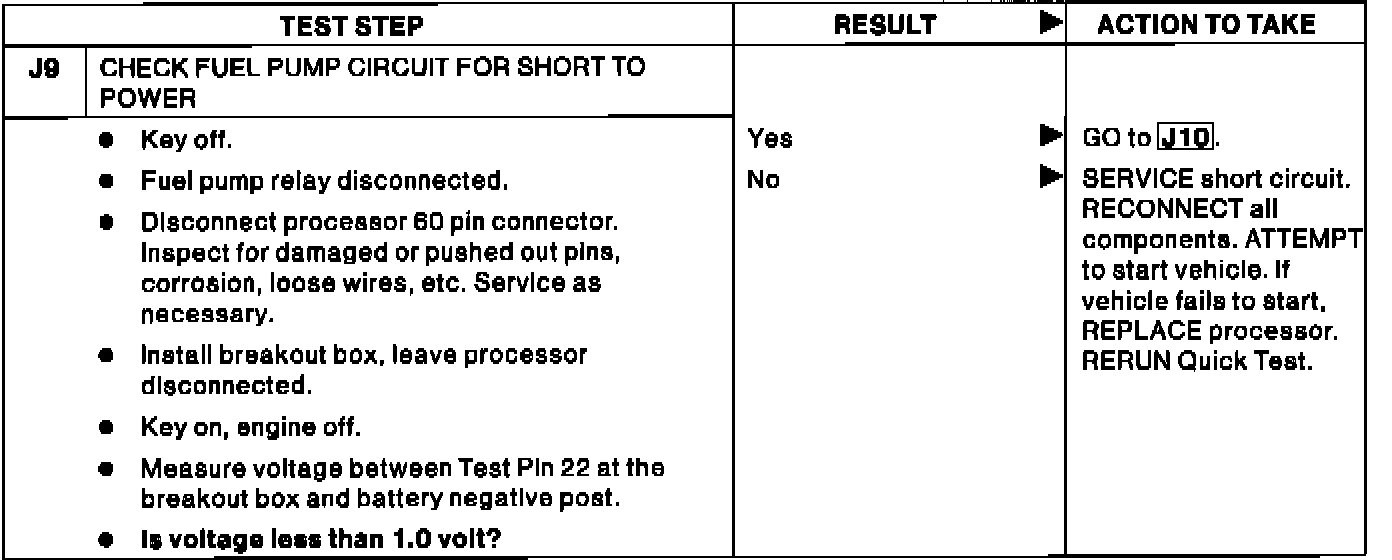

Pinpoint Test J9:
