FD - Brake On/Off (BOO) Switch
>>
FD11 - Check BOO Circuit Continuity
FD11 - Check BOO Circuit Continuity

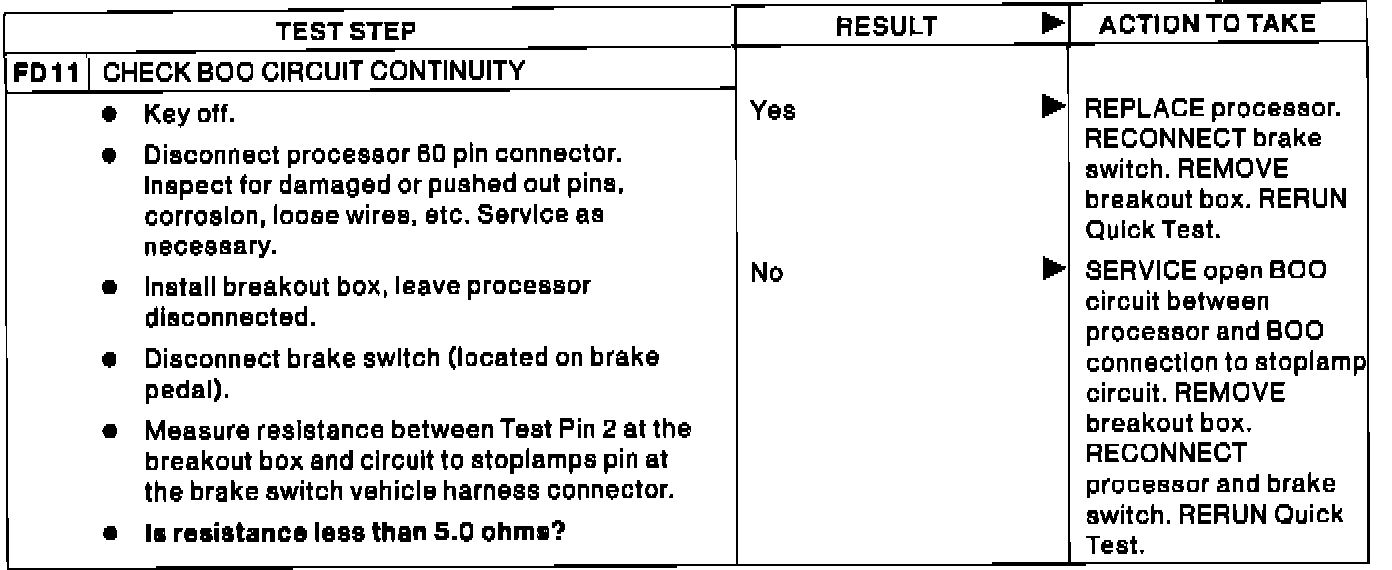

Pinpoint Test FD11:
