DL - PFE/DPFE Sensor; EVR Solenoid Testing
>>

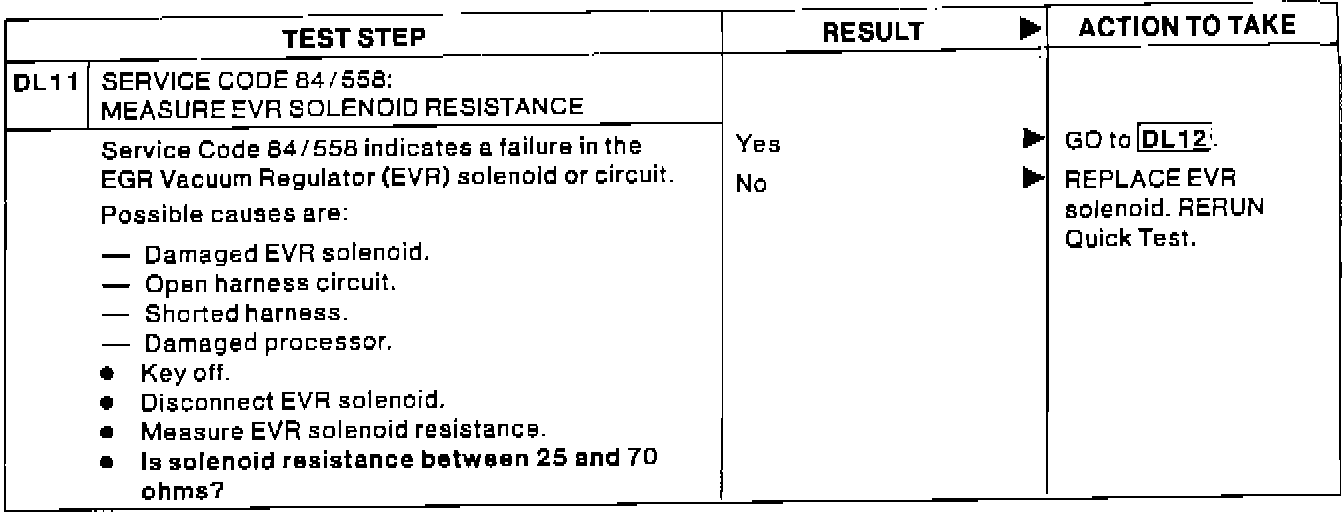

DL11 - Service Code 84/558: Measure EVR Solenoid Resistance
DL11 - Service Code 84/558: Measure EVR Solenoid Resistance
*** UPDATED BY TSB 9224B6 DATED 06-01-92
Pinpoint Test DL11:
