Connector Views

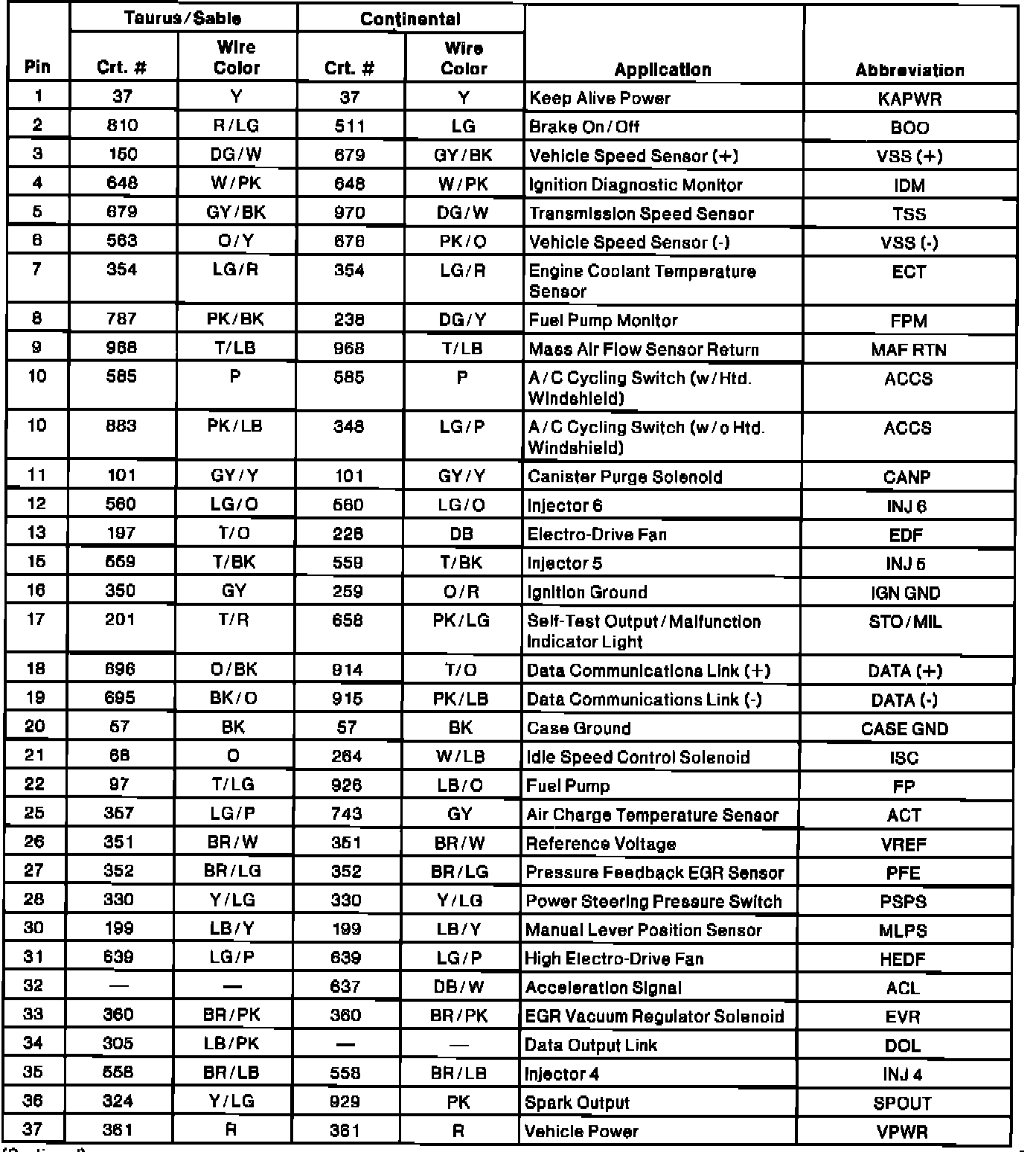

Electronic Engine Controller Connector Pinout:

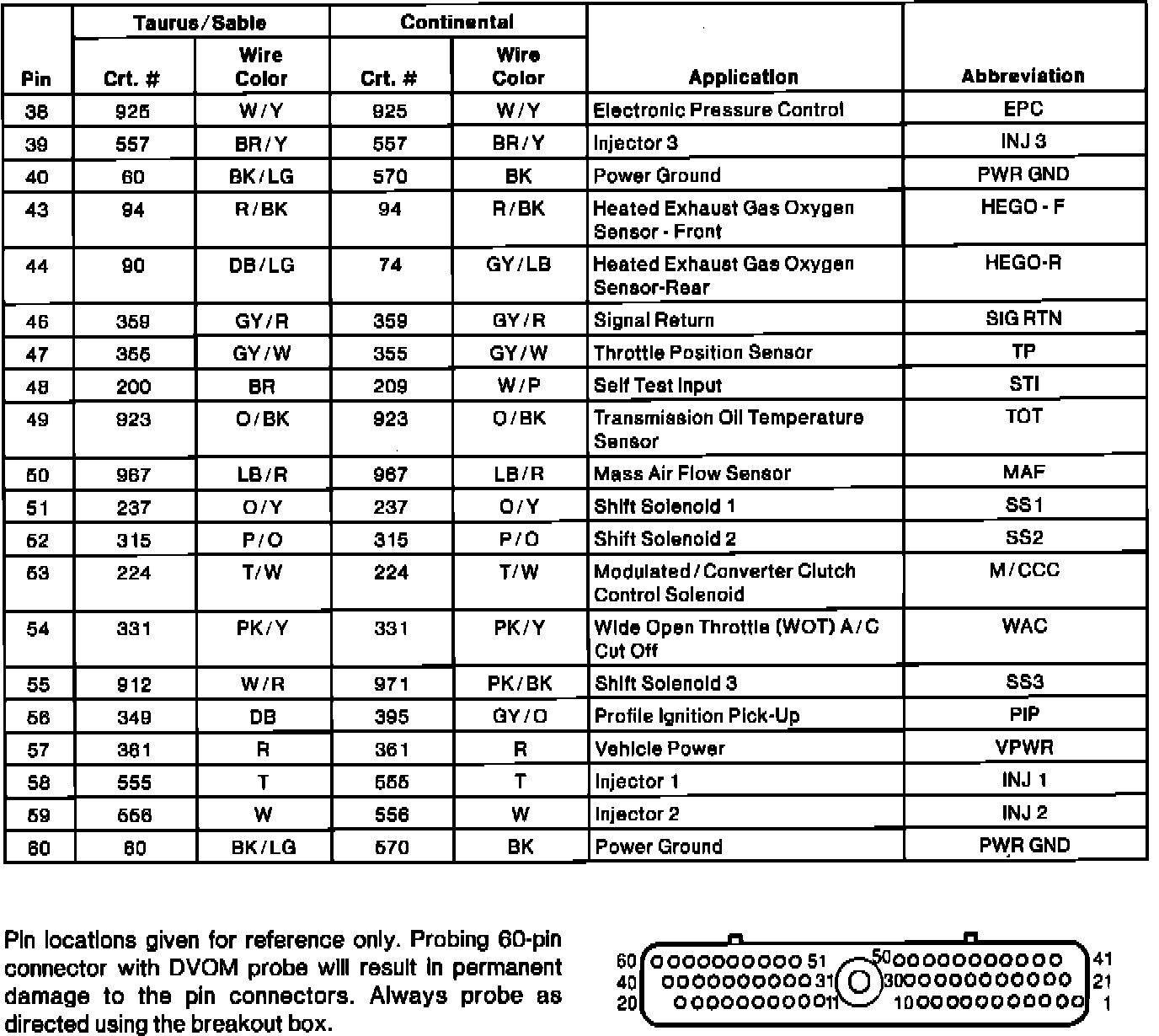

Electronic Engine Controller Connector Pinout:
