Home
>>
Mercury
>>
1992
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Non-Trouble Code Procedures
>>
Insufficient Cooling Diagnosis
>>
A1-A6
A1-A6

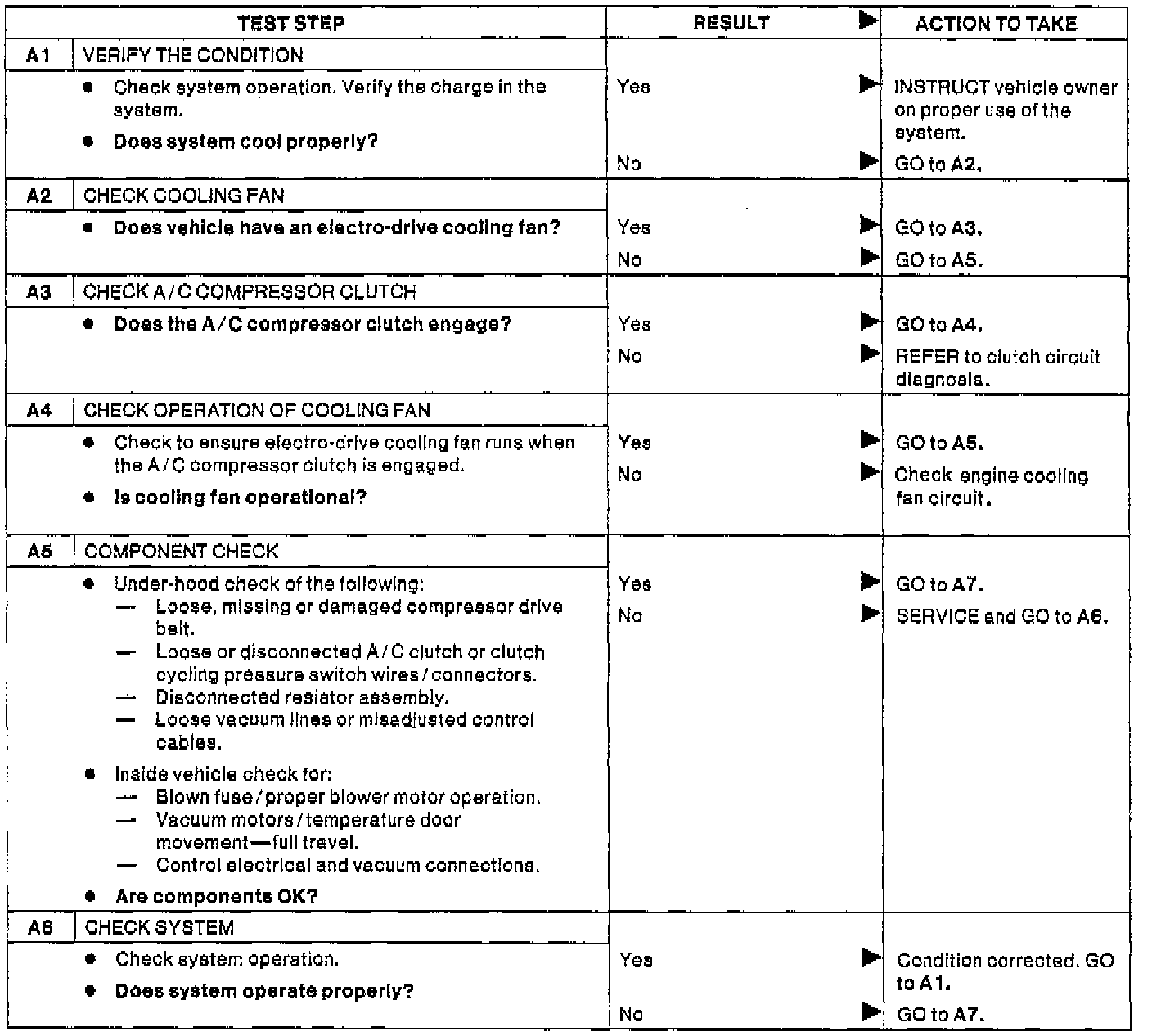

Pinpoint Test A1-A6 - Insufficient or No A/C Cooling:
