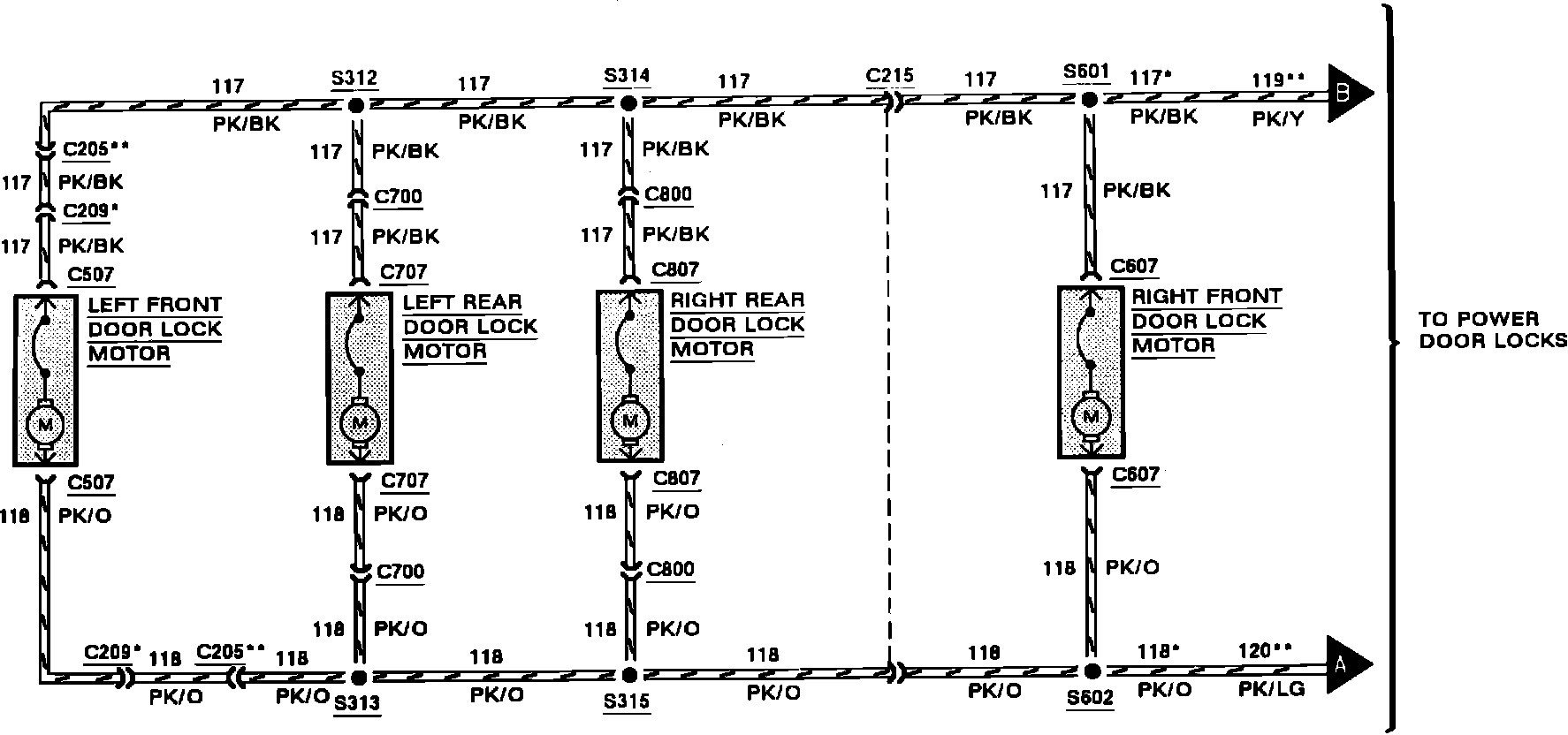

Power Locks Without Keyless Entry (Part 1 0f 2):

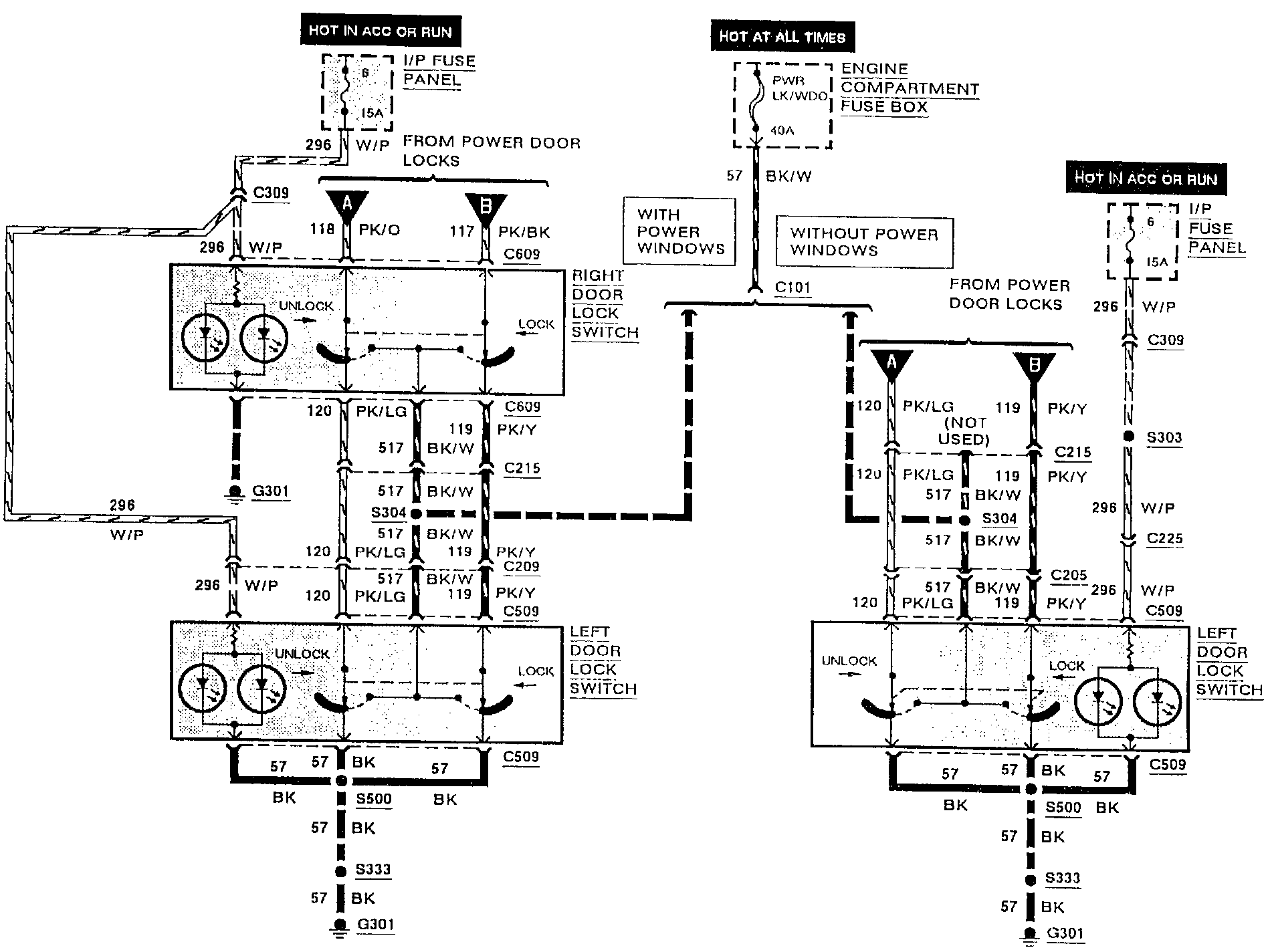

Power Door Locks Without Keyless Entry (Part 2 Of 2):
