Autolamp Time Control Switch


TERMINAL LOCATION

Terminal Location:

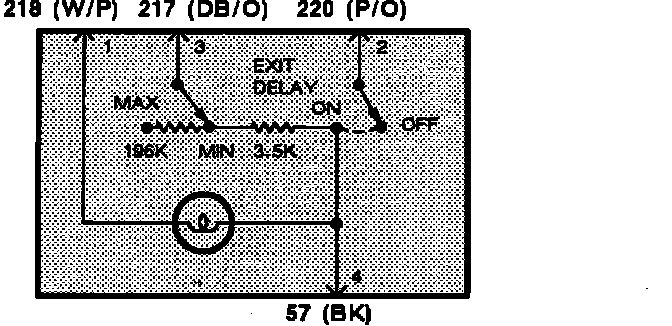

SCHEMATIC

Schematic:

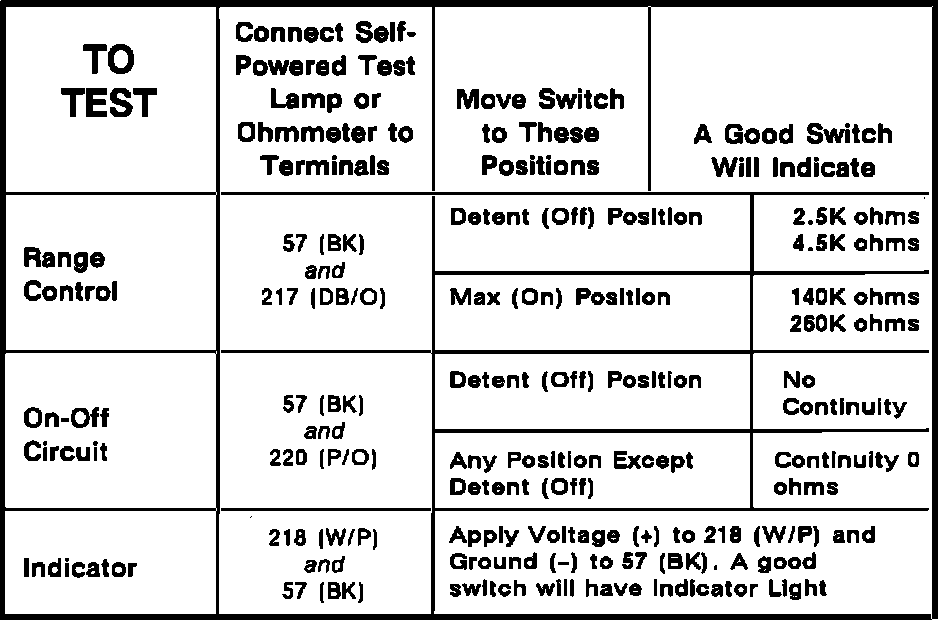

COMPONENT TESTING PROCEDURE

Component Testing Procedure:
