Home >> Mercury >> 1992 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Hazard Warning Switch >> Diagrams >> Electrical Diagrams >> Hazard/Turn/Stop Lamps Wiring Circuit >> Sedan

Sedan

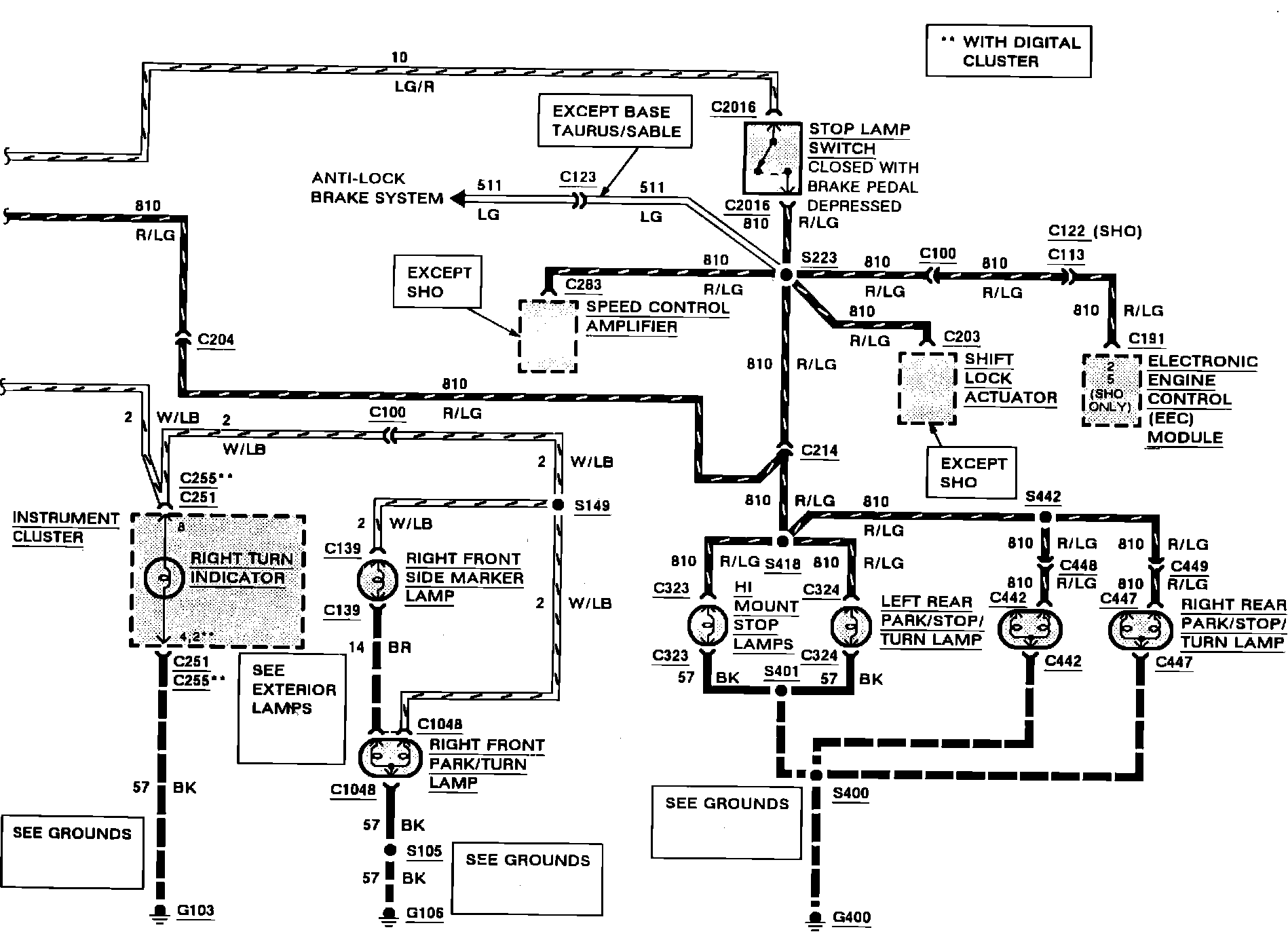

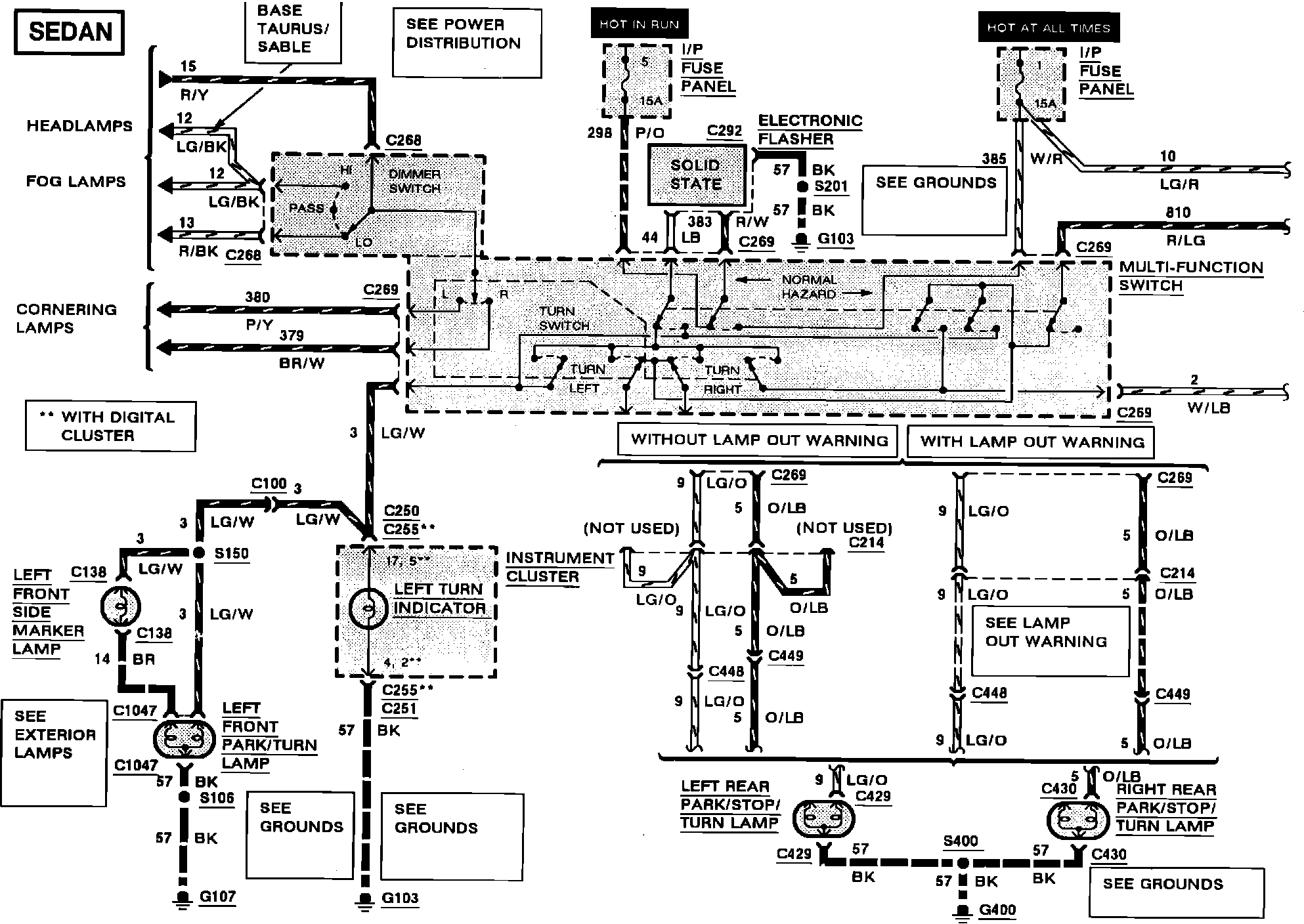

Turn/Stop/Hazard Lamps:



Turn/Stop/Hazard Lamps:
