Home >> Mercury >> 1992 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Diagrams >> Electrical Diagrams >> System Diagrams >> Part 2 of 3

Part 2 of 3

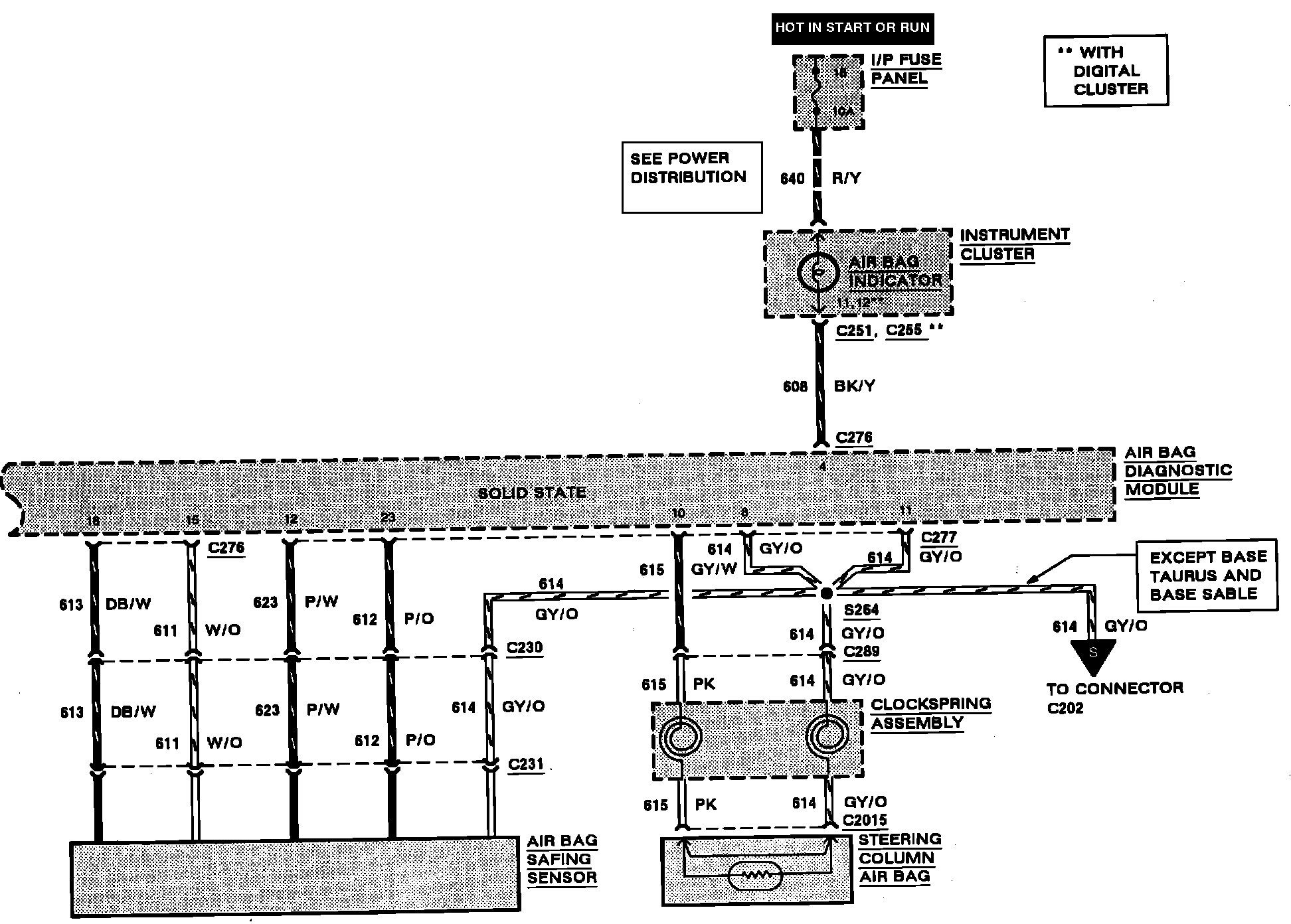

Air Bag Restraint System:
