Home >> Mercury >> 1992 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> B - IDM Missing Code 18C or 212C >> B2 - Check For IDM Short High

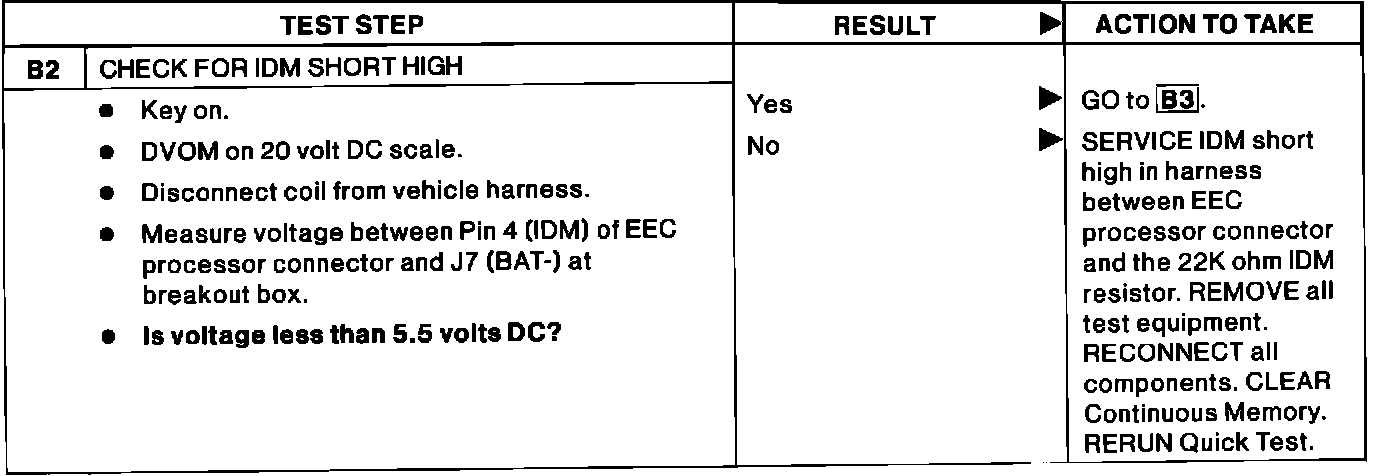

B2 - Check For IDM Short High

Pinpoint Test B2:
