Home >> Mercury >> 1992 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> A - No Start >> A14 - Resistance Check of TFI Module

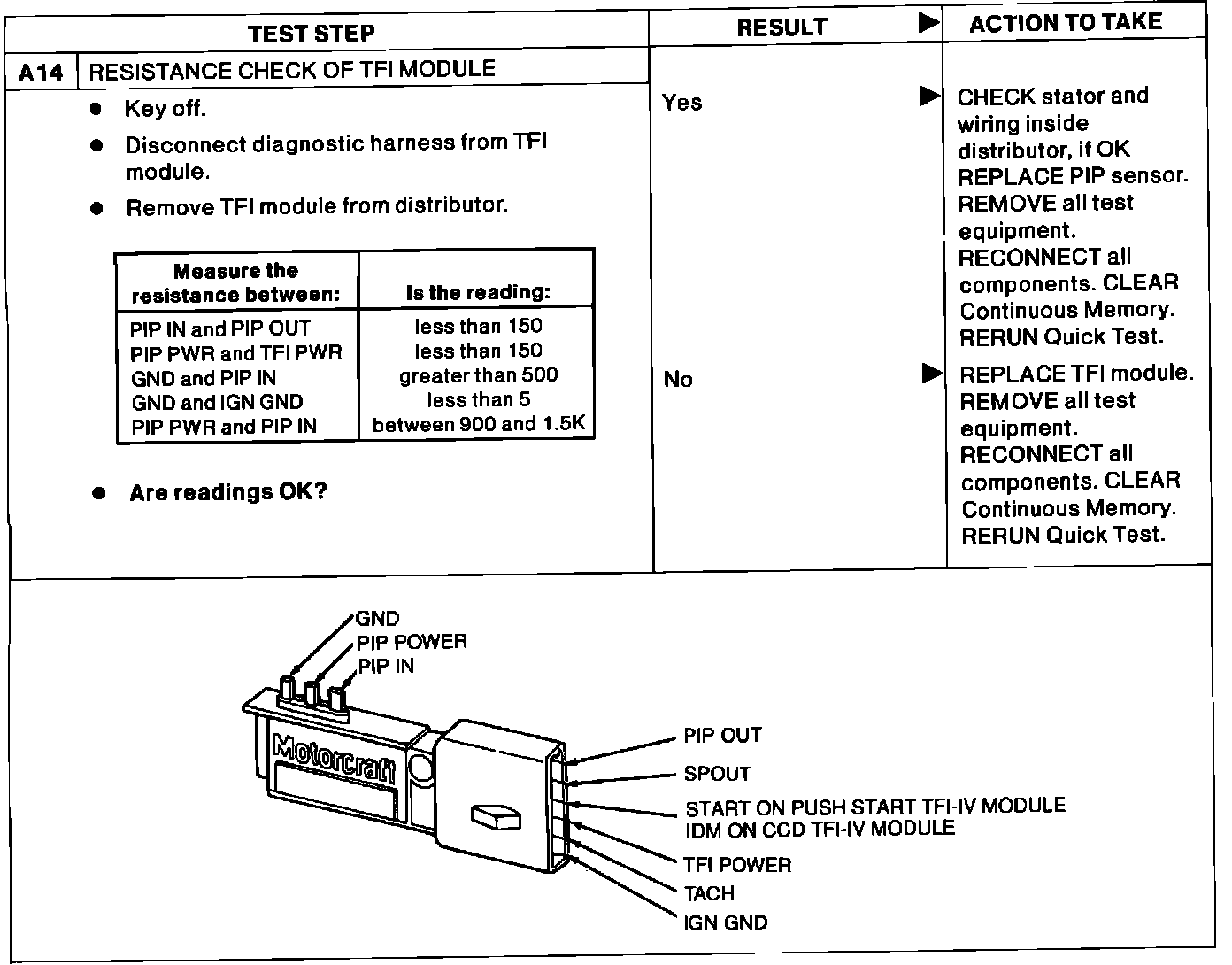

A14 - Resistance Check of TFI Module

Pinpoint Test A14:
