Home >> Mercury >> 1992 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Testing and Inspection >> TS41 - Check For Vacuum Control Valve Function

TS41 - Check For Vacuum Control Valve Function

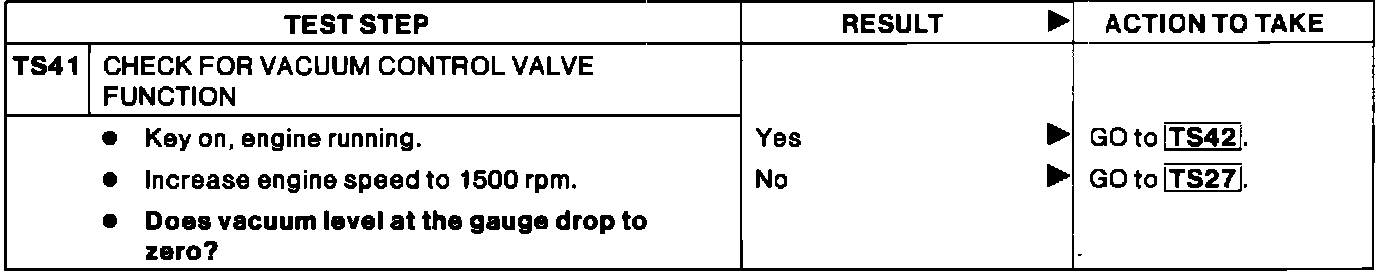

Diagnostic Test TS41:

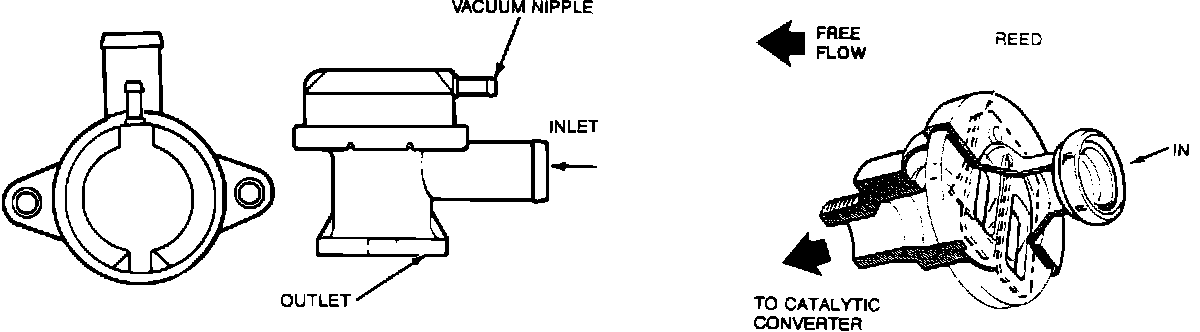

Pulse Air Valve:
