Home >> Mercury >> 1992 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Testing and Inspection >> TS40 - Check For Vacuum at Control Valve

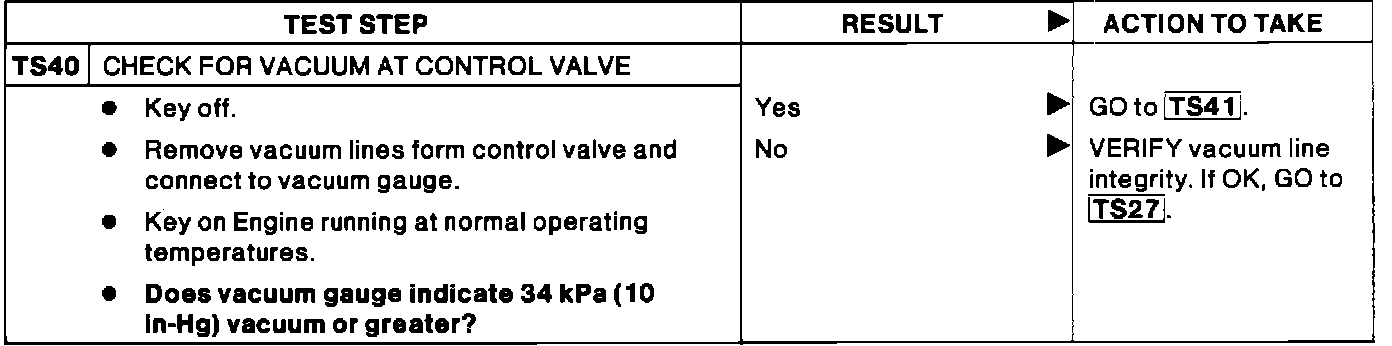

TS40 - Check For Vacuum at Control Valve

Diagnostic Test TS40:



Pulse Air Valve:
